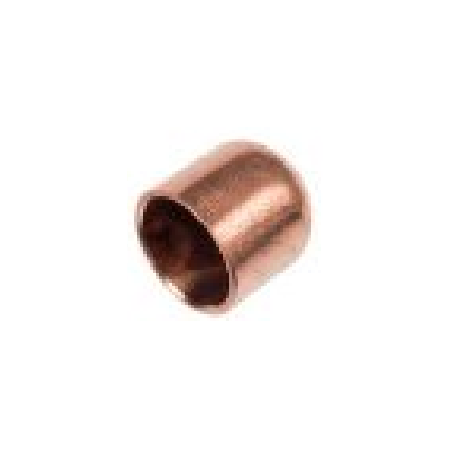

1 5/8Cap XHP High Pressure Copper End Cap | 130 Bar Rating | TüV Certified | by Aspen Pumps
The 1 5/8Cap XHP high pressure copper end cap is engineered for high pressure refrigeration systems, featuring a robust 130 bar pressure rating and made from ANS C19400 copper iron alloy for superior corrosion resistance. Ideal for HVAC and refrigeration installations, this end cap ensures reliable performance and compliance with ASTM B 280 and AS5149.2 standards, making it a trusted choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 5/8Cap XHP High Pressure Copper End Cap | 130 Bar Rating | TüV Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 127-129301-158
Alternatively Known As: High Pressure Copper End Cap, SANHA 130 bar Copper Fitting End Cap, CuFe2P End Cap, Refrigeration Copper End Cap
Technical Specifications
- Material: ANS C19400 Copper Iron Alloy (CuFe2P)
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Certification: TüV certified
- Joining Method: Traditional brazed joining with magnetic identification
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.2 kg
Key Features
- Made from ANS C19400 Copper Iron Alloy (CuFe2P) for high corrosion resistance
- Certified to TüV standards for quality and safety
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method with magnetic identification
- Compliant with ASTM B 280 and AS5149.2 standards
Professional Installation Requirements
- Installation by a qualified refrigeration or HVAC technician is required to ensure proper brazing and system integrity.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial piping requiring high corrosion resistance
- HVAC and refrigeration installations with brazed copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Durable copper alloy reduces need for frequent replacements, minimizing waste
- Supports environmentally friendly R744 refrigerant systems with low global warming potential
Warranty Information
Warranty coverage as per Aspen Pumps standard terms and conditions.
Available Now
The Aspen Pumps 1 5/8Cap XHP high pressure copper end cap is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
