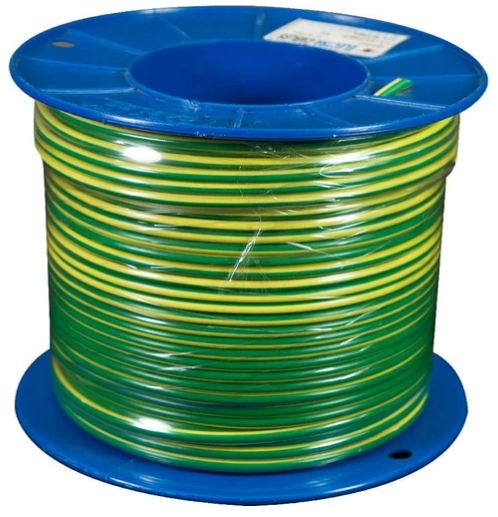

1.5mm Green Yellow Earth Building Wire | Stranded Copper | PVC Insulation | 450/750V Rated | @M of 100 | by Electra Cables
1.5mm Green Yellow Earth Building Wire is designed for reliable earthing in residential and commercial electrical installations. Featuring a stranded copper conductor for flexibility and PVC insulation for durability, this wire is ideal for grounding systems and general building wiring. Supplied in a convenient 100m roll, it complies with Australian standards for electrical wiring, ensuring safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1.5mm Green Yellow Earth Building Wire | Stranded Copper | PVC Insulation | 450/750V Rated | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SR1015-100G/Y
Alternatively Known As: 1.5mm earth wire, green yellow earth cable, 1.5mm² earthing wire, building earth wire, 7/0.5mm earth cable
Technical Specifications
- Conductor: Stranded copper (7/0.5mm)
- Cross-sectional area: 1.5mm²
- Insulation: PVC, green/yellow
- Voltage rating: 450/750V
- Length: 100m roll
- Operating temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 100mm x 200mm x 200mm
- Weight: 2.5 kg
Key Features
- 1.5mm² cross-sectional area for reliable earthing
- Green/yellow insulation for easy identification as earth wire
- Stranded copper conductor (7/0.5mm) for flexibility
- Supplied in a 100m roll for convenience
- PVC insulated for durability and safety
- Complies with Australian standards for electrical wiring
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical installations
- Earthing and grounding systems
- General building wiring
- Suitable for use in conduit and trunking
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1 kV
Environmental Benefits
- PVC insulation is lead-free and RoHS compliant
- Copper conductor is recyclable
- Long-lasting design reduces replacement frequency and waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for use in residential and commercial earthing and general building wiring applications.
