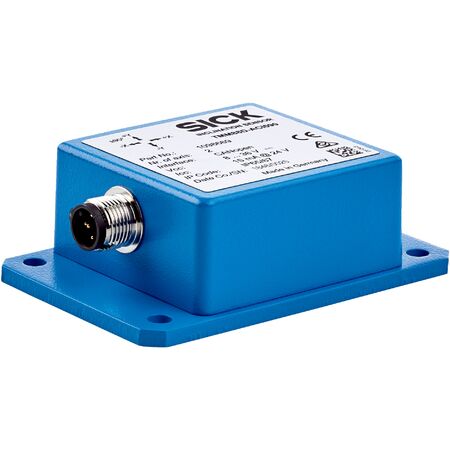

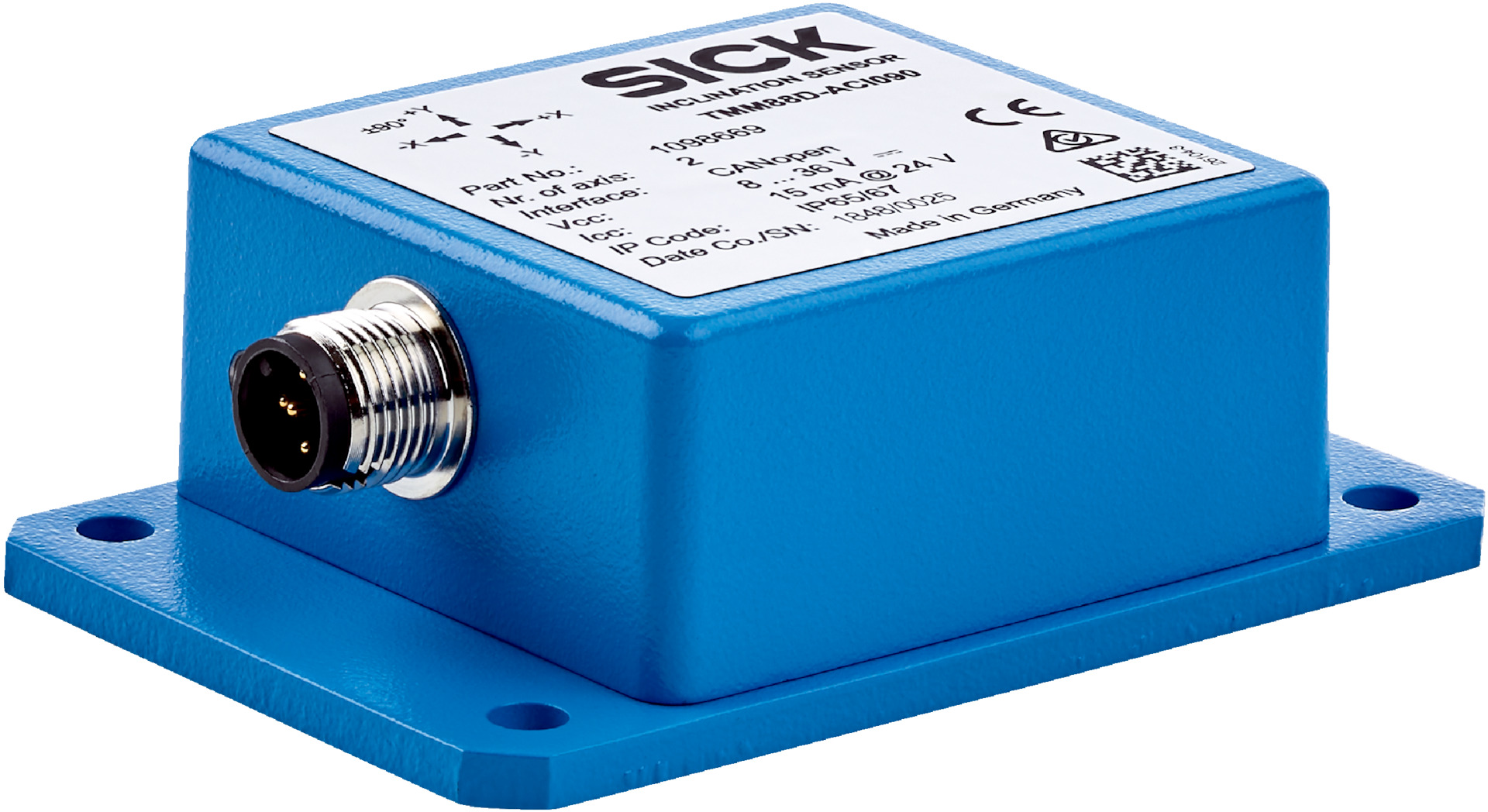

1-Axis Angle Sensor TMS88D-AJI360 | 360° Measuring Range | 0.01° Resolution | IP67 & IP69K Rated | by SICK
The 1-Axis Angle Sensor TMS88D-AJI360 offers a 360° measuring range with high precision at 0.01° resolution, making it ideal for industrial automation and robotics. Built for reliability, it features robust aluminum housing with IP67 and IP69K ratings, ensuring durability in harsh environments. With a wide operating temperature range from -40 °C to +80 °C, this sensor is perfect for safety-related applications requiring accurate angle detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of axis: 1
- Measuring range: 360°
- Resolution: 0.01°
- Static measurement accuracy: ±0.3°
- Dynamic measurement accuracy: ±0.5°
- Temperature coefficient (zero point): Typ. ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz (with digital filter)
- Interference suppression time for sensor fusion filter: 100 ms to 10,000 ms
- Sampling rate: 200 Hz
- Pitch (Euler angle): ±90° (Pitch), ±180° (Roll)
- Acceleration: ±8 g (x-, y-, z-axis)
- Turning rate: ±250 °/s (x-, y-, z-axis)
- Communication interface: SAE J1939
- Address setting: 0 to 253 (default 128)
- Data transmission rate: 250 kbit/s to 500 kbit/s (default 250 kbit/s)
- Connection type: Male and Female M12, 5-pin connectors
- Supply voltage: 8 V DC to 36 V DC
- Current consumption: < 15 mA @ 24 V
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Housing material: Aluminum
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +80 °C
- Storage temperature range: –40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 31mm x 90mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution of 0.01° for precise angle measurement
- Measuring range of 360° with static accuracy ±0.3° and dynamic accuracy ±0.5°
- Robust aluminum housing with IP67 and IP69K protection ratings
- Wide operating temperature range from –40 °C to +80 °C
- Supports SAE J1939 communication interface with configurable parameters
- Reverse polarity and short-circuit protection included
- Fast sampling rate of 200 Hz and programmable filter settings
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and SAE J1939 communication protocols.
Applications
- Industrial automation for precise angle measurement
- Robotics for position and motion control
- Vehicle and machinery monitoring systems
- Safety-related applications requiring reliable angle detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low current consumption (<15 mA) contributes to energy efficiency
- Robust protection against environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK TMS88D-AJI360 angle sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety monitoring applications.
