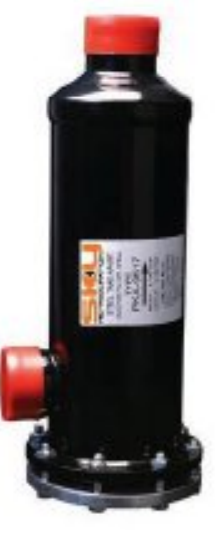

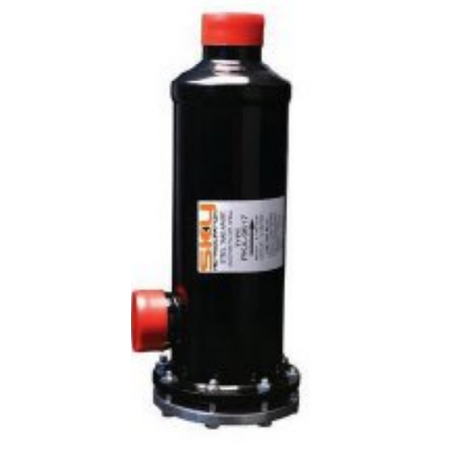

1 Core - 1-1/8 SOL Pressure Vessel Filter Drier | High Pressure | Anti-Corrosion Finish | by Aspen Pumps
The 1 Core - 1-1/8 SOL Pressure Vessel Filter Drier is designed for HVAC systems requiring high-pressure filtration. With a safe working pressure of 4,380 kPa and a large secondary mesh filter for efficient particulate removal, this unit is perfect for both commercial and residential refrigeration applications. Built with double plated steel and solid copper connections, it ensures durability and ease of installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Core - 1-1/8 SOL Pressure Vessel Filter Drier | High Pressure | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-1801
Alternatively Known As: Pressure Vessel Filter Drier Shell, HVAC Filter Drier, Refrigeration Pressure Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection size: 1 1/8 inch
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C, condensing temps 30°C and 32°C
- Double plated steel end plate with stainless steel bolts
- Anti-corrosion powder coat finish
- Solid copper connections
- Large secondary mesh filter for particulate removal with minimal pressure drop

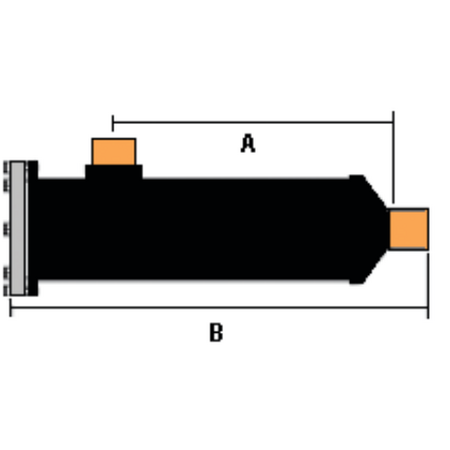

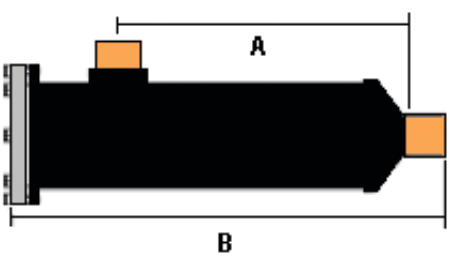

- Dimensions (H x L x W): 140mm x 140mm x 60mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish with solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is recommended to ensure system integrity and compliance with safety standards.
Applications
- HVAC systems requiring high-pressure filter and drier shells
- Commercial and residential refrigeration and air conditioning
- Systems using R-410a refrigerant and CO2 upgradeable setups
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports efficient HVAC system operation reducing energy consumption
- Corrosion-resistant materials extend product life reducing waste
- Enables use with environmentally friendly refrigerants like CO2
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel 1 Core - 1-1/8 SOL is available for immediate purchase, ideal for HVAC and refrigeration systems requiring high-pressure filter and drier shells.
