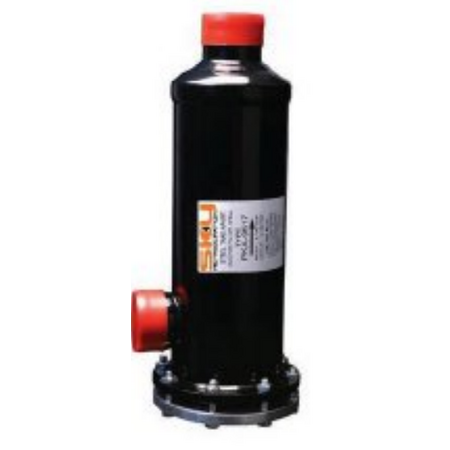

1 Core - 1-3/8 SOL Refrigeration Pressure Vessel | High Pressure Handling | Anti-Corrosion Finish | by Aspen Pumps
The 1 Core - 1-3/8 SOL Refrigeration Pressure Vessel is designed for high-pressure HVAC systems, capable of handling R-410a and CO2 refrigerants. With a durable anti-corrosion powder coat finish and solid copper connections, it ensures long-lasting performance and ease of installation. Ideal for commercial and industrial refrigeration applications, this vessel features a large secondary mesh filter for efficient particulate removal.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Core - 1-3/8 SOL Refrigeration Pressure Vessel | High Pressure Handling | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-2201
Alternatively Known As: Accessible Filter & Drier Shell, Refrigeration Pressure Vessel, HVAC Filter Drier Shell
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection size: 1 3/8 inch
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C, condensing temps 30°C and 32°C
- Double plated steel end plate with stainless steel bolts
- Anti-corrosion powder coat finish
- Solid copper connections
- Large secondary mesh filter for particulate removal with minimal pressure drop

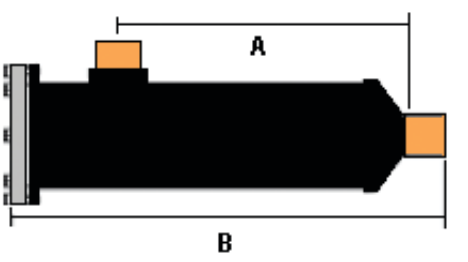

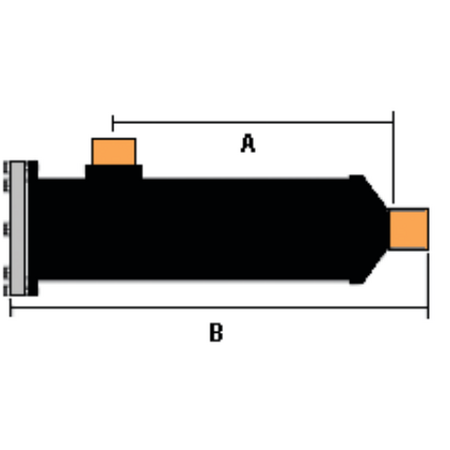

- Dimensions (H x L x W): 140mm x 140mm x 100mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration specialist is recommended to ensure system integrity and compliance with safety standards.
Applications
- HVAC systems requiring high-pressure filter and drier shells
- Refrigeration systems using R-410a and CO2 refrigerants
- Commercial and industrial refrigeration and air conditioning
Standards & Compliance
- Complies with AS/NZS ISO 5149.2 for refrigeration safety and performance
Environmental Benefits
- Supports efficient refrigeration system operation reducing energy consumption
- Durable construction reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from Aspen Pumps, typically 1-2 years covering manufacturing defects.
Available Now
The Aspen SKY Pressure Vessel 1 Core - 1-3/8 SOL is available for immediate purchase, ideal for commercial and industrial refrigeration and air conditioning applications.
