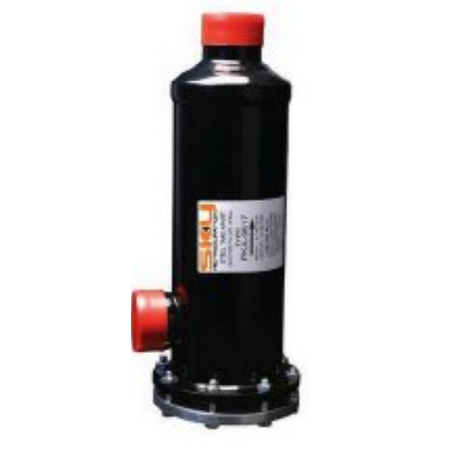

1 Core - 1-5/8 SOL Pressure Vessel Filter Drier | ISO Compliant | Anti-Corrosion Finish | by Aspen Pumps
The 1 Core - 1-5/8 SOL Pressure Vessel Filter Drier is designed for HVAC systems requiring high-pressure filtration. With a safe working pressure of 4,380 kPa and a large secondary mesh filter for efficient particulate removal, it ensures optimal performance in both commercial and residential refrigeration applications. Built with solid copper connections and an anti-corrosion powder coat finish, this filter drier is perfect for systems using R-410a refrigerant.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Core - 1-5/8 SOL Pressure Vessel Filter Drier | ISO Compliant | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-2601
Alternatively Known As: Pressure Vessel Filter Drier Shell, HVAC Filter Drier, Refrigeration Pressure Vessel
Technical Specifications
- Complies with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection size: 1 5/8 inch
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C, condensing temps 30°C and 32°C
- Large secondary mesh filter for particulate removal with minimal pressure drop
- Double plated steel end plate with stainless steel bolts
- Anti-corrosion powder coat finish
- Solid copper connections

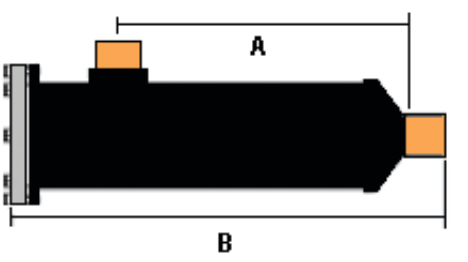

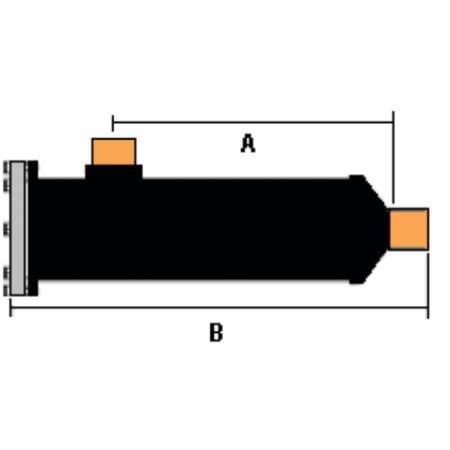

- Dimensions (H x L x W): 400mm x 400mm x 50mm
- Weight: 3.5 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2
- Safe working pressure (SWP) of 4,380 kPa
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician is recommended to ensure system integrity and compliance with safety standards.
Applications
- HVAC systems requiring high-pressure filter and drier shells
- Commercial and residential refrigeration and air conditioning
- Systems using R-410a refrigerant and CO2 upgradeable setups
Standards & Compliance
- Complies with AS/NZS 5149.2 - Refrigerating systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Supports efficient refrigeration system operation reducing energy consumption
- Durable construction reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The Aspen SKY Pressure Vessel 1 Core - 1-5/8 SOL is available for immediate purchase, ideal for HVAC and refrigeration systems requiring high-pressure filter and drier shells.
