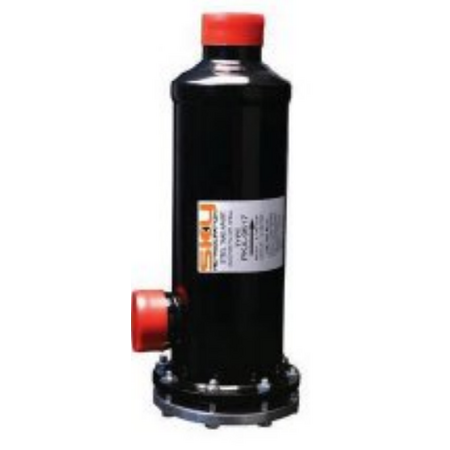

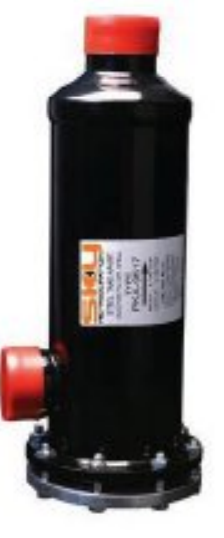

1 Core - 2-1/8 SOL Pressure Vessel Filter Drier | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
The 1 Core - 2-1/8 SOL Pressure Vessel Filter Drier is designed for HVAC and refrigeration systems, handling high pressures of R-410a and CO2. With a durable anti-corrosion powder coat finish and solid copper connections, it ensures reliable performance and extended service life. Ideal for commercial and industrial applications, this filter drier features a large secondary mesh filter for effective particulate removal with minimal pressure drop.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Core - 2-1/8 SOL Pressure Vessel Filter Drier | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-3401
Alternatively Known As: Pressure Vessel Filter Drier Shell, Refrigeration Filter Drier, HVAC Pressure Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection size: 2 1/8 inches
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C, condensing temps 30°C and 32°C
- Double plated steel end plate with stainless steel bolts
- Anti-corrosion powder coat finish
- Solid copper connections
- Large secondary mesh filter for particulate removal with minimal pressure drop

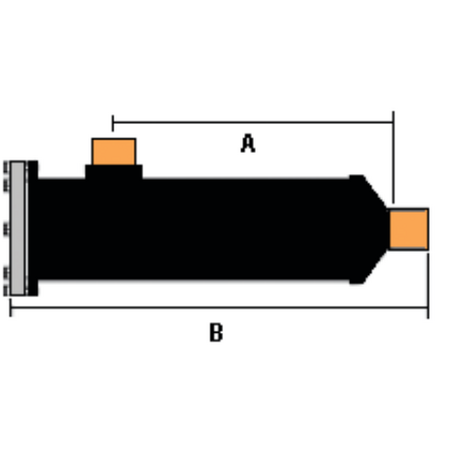

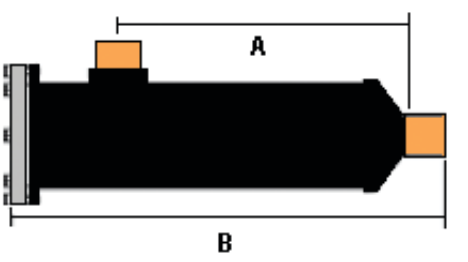

- Dimensions (H x L x W): 70mm x 140mm x 70mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration professional is recommended to ensure system integrity and compliance with safety standards.
Applications
- HVAC systems requiring high-pressure filter and drier shells
- Refrigeration systems using R-410a and CO2 refrigerants
- Commercial and industrial refrigeration and air conditioning
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports efficient refrigeration system operation reducing energy consumption
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel 1 Core - 2-1/8 SOL is available for immediate purchase, ideal for commercial and industrial refrigeration and air conditioning applications.
