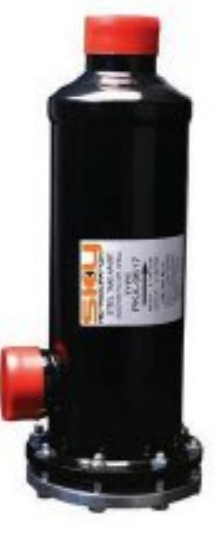

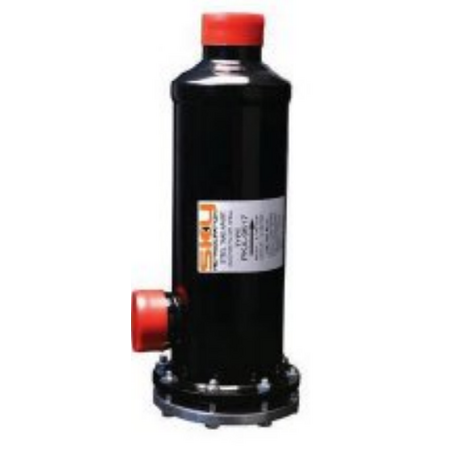

1 Core - 4 SOL/WELD Pressure Vessel Filter Drier | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
The 1 Core - 4 SOL/WELD Pressure Vessel Filter Drier is designed for high-pressure HVAC and refrigeration systems, handling R-410a refrigerant with ease. Featuring a durable anti-corrosion powder coat finish and solid copper connections, this filter drier ensures optimal refrigerant flow and extended service life. Ideal for commercial and industrial applications, it enhances system efficiency while complying with AS/NZS 5149.2 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Core - 4 SOL/WELD Pressure Vessel Filter Drier | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 310-6401
Alternatively Known As: Pressure Vessel Filter Drier Shell, HVAC Filter Drier, Refrigeration Pressure Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C, condensing temps 30°C and 32°C
- Pressure drop (Pd): 7 kPa (1 psi)
- Connection size: 4

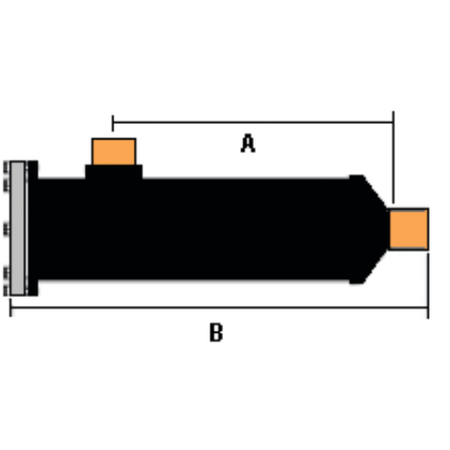

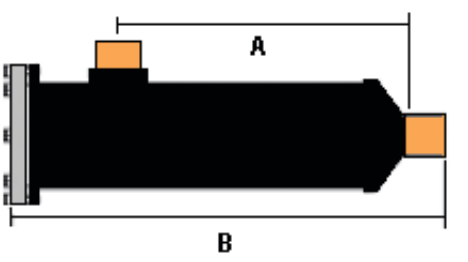

- Length - B: 150 mm
- Dimensions (H x L x W): 150mm x 150mm x 80mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard refrigerant
- CO2 upgradeable design
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is recommended to ensure system integrity and safety.
Applications
- HVAC systems requiring high pressure refrigerant filtration
- Commercial and industrial refrigeration systems
- Systems using R-410a refrigerant and CO2 upgradeable applications
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Enhances system efficiency by maintaining clean refrigerant flow
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The Aspen SKY Pressure Vessel 1 Core - 4 SOL/WELD is available for immediate purchase, ideal for high-pressure HVAC and refrigeration system applications.
