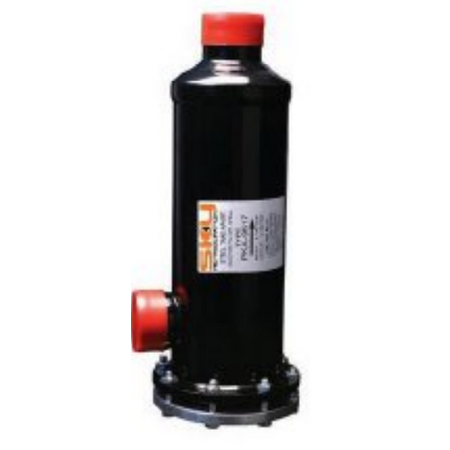

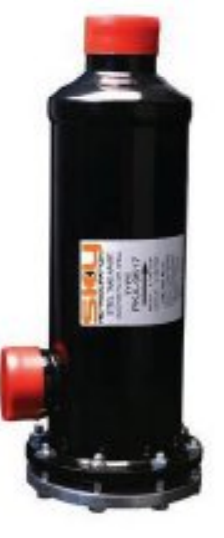

1 Core - 7/8 SOL Pressure Vessel | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
The 1 Core - 7/8 SOL Pressure Vessel is designed for high-pressure refrigerant handling in HVAC and refrigeration systems. Manufactured to ISO/AS 5149.2 standards, it features a large secondary mesh filter for efficient particulate removal and solid copper connections for durability. Ideal for commercial and industrial applications, this vessel ensures optimal performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Core - 7/8 SOL Pressure Vessel | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-1401
Alternatively Known As: Pressure Vessel 1 Core 7/8 SOL, Accessible Filter Drier Shell, HVAC Pressure Vessel, Refrigeration Filter Drier Shell
Technical Specifications
- Manufactured to ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection Size: 7/8 inch
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C, condensing temps 30°C and 32°C
- Large secondary mesh filter for particulate removal with minimal pressure drop
- Double plated steel end plate with stainless steel bolts
- Anti-corrosion powder coat finish
- Solid copper connections

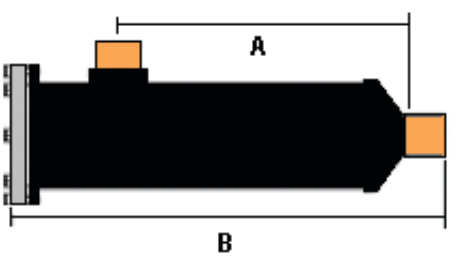

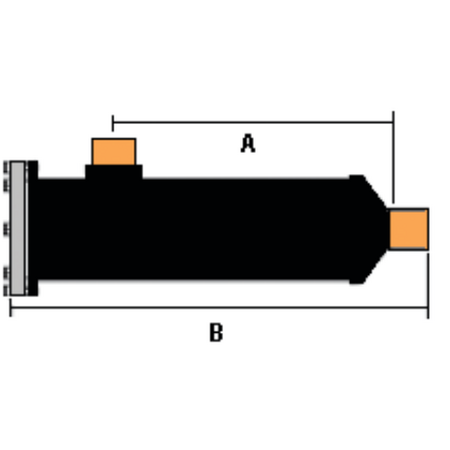

- Dimensions (H x L x W): 140mm x 140mm x 100mm
- Weight: 2.5 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2 standards
- Safe working pressure (SWP) of 4,380 kPa
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased durability
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
- Compatible with R-410a standard and upgradeable for CO2 refrigerants
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician to ensure compliance with safety standards and optimal system performance.
Applications
- HVAC systems requiring high-pressure refrigerant handling
- Commercial and industrial refrigeration systems
- Air conditioning systems using R-410a and CO2 refrigerants
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports efficient refrigerant filtration reducing system leaks and environmental impact
- Durable construction extends product life reducing waste
- Compatible with environmentally friendly refrigerants like CO2
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel 1 Core - 7/8 SOL is available for immediate purchase, ideal for HVAC and refrigeration system applications requiring high-pressure filter and drier shells.
