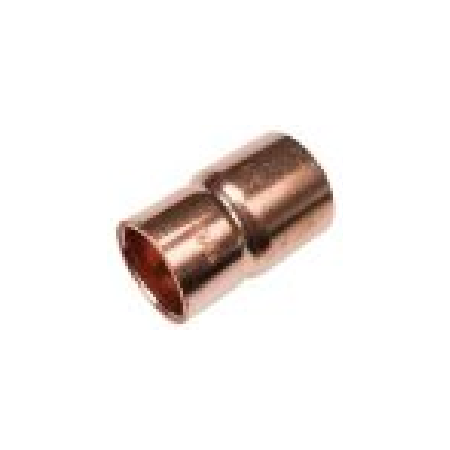

1 Coupling 3/8 w/stop XHP | High Pressure Rated 130 Bar | CuFe2p Alloy | by Aspen Pumps
The 1 Coupling 3/8 w/stop XHP is a high-pressure solder fitting designed for refrigeration systems using R744 (CO2) refrigerant. Made from durable CuFe2p (Copper Iron Alloy), it offers enhanced corrosion resistance and is certified to ASTM B 280 and AS5149.2 standards. Ideal for industrial and commercial HVAC installations, this coupling ensures reliable performance in high-pressure applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Coupling 3/8 w/stop XHP | High Pressure Rated 130 Bar | CuFe2p Alloy | by Aspen Pumps
Brand: Aspen Pumps
SKU: 121-129270-138
Alternatively Known As: High Pressure Copper Coupling, 3/8 inch Coupler with Stop, CuFe2p Solder Fitting, Refrigeration Coupling 130 bar
Technical Specifications
- Material: CuFe2p (Copper Iron Alloy)
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Refrigerant Compatibility: R744 (CO2)
- Joining Method: Traditional Brazed Joining with Magnetic Identification
- Certification: TüV Certified
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- High pressure solder fitting rated for 130 bar
- Made from CuFe2p (Copper Iron Alloy) for enhanced corrosion resistance
- Certified to ASTM B 280 and AS5149.2 standards
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining with magnetic identification
- Certified to TüV for quality assurance
Professional Installation Requirements
- Installation must be performed by a qualified HVAC technician or plumber experienced with high pressure refrigeration systems and brazed copper fittings.
Applications
- Refrigeration systems using R744 (CO2) refrigerant
- High pressure hydraulic systems
- Industrial and commercial HVAC installations requiring high corrosion resistance fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigeration systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Durable copper alloy construction reduces need for frequent replacements, minimizing waste
- Supports use of environmentally friendly R744 (CO2) refrigerant systems
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps 1 Coupling 3/8 w/stop XHP is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
