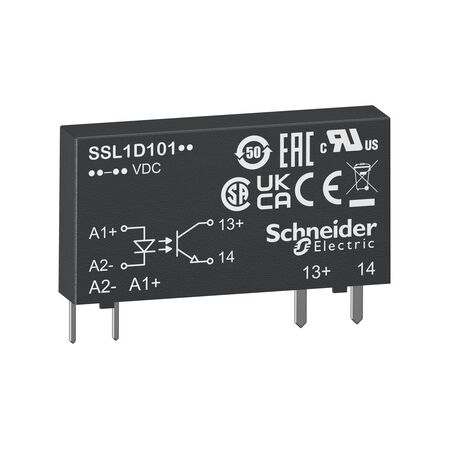

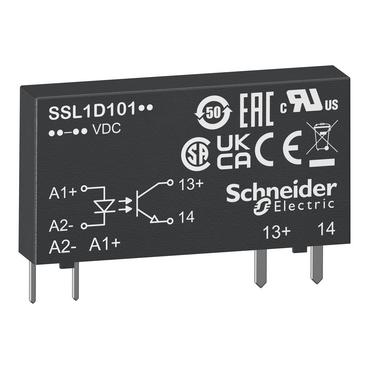

1 Phase Solid State Relay 280V | Plug-in Slim Design | 2A Output Current | Random Switching | @Pack of 1 | by Clipsal
The 1 Phase Solid State Relay 280V is designed for efficient control in industrial automation and HVAC systems. With a plug-in slim design, it supports random switching and operates with an input voltage of 3 to 12V DC, delivering up to 2A output current. Ideal for lighting control and motor switching, this relay ensures low power consumption and minimal maintenance, making it a reliable choice for process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Phase Solid State Relay 280V | Plug-in Slim Design | 2A Output Current | Random Switching | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSL1A12JDR
Alternatively Known As: ['Solid State Relay 280V', 'Clipsal Harmony Slim Relay', 'SCHSSL1A12JDR', '1 Phase SSR', 'Industrial Solid State Relay']
Technical Specifications
- Relay type: Solid State
- Phase: Single phase
- Input voltage: 3 to 12V DC
- Output voltage: 24 to 280V AC
- Output current: 2A
- Switching type: Random switching
- Mounting: Plug-in (slim design)
- Series: Harmony Solid State Slim Relays
- Dimensions (H x L x W): 80mm x 90mm x 6mm
- Weight: 0.1 kg
Key Features
- Solid state relay for 1-phase applications
- Plug-in slim design for easy installation
- Supports random switching
- Input voltage: 3 to 12V DC
- Output voltage: 24 to 280V AC
- Output current: 2A
- Harmony Solid State Slim Relay series
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial automation panels
- HVAC control systems
- Lighting control
- Motor switching
- Process control equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Solid state design reduces mechanical wear and extends product lifespan
- Low power consumption during operation
- No moving parts, minimizing maintenance and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 1 Phase Solid State Relay 280V SCHSSL1A12JDR is available for immediate purchase. Ideal for industrial automation, HVAC, and process control applications.
