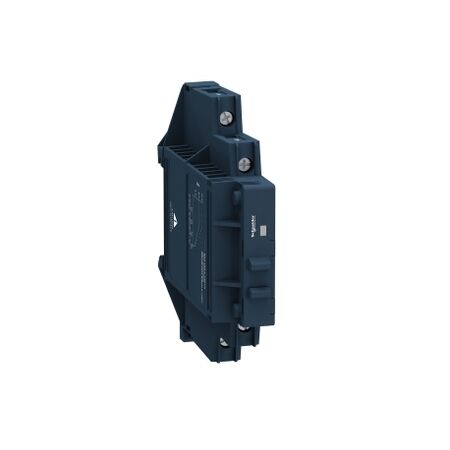

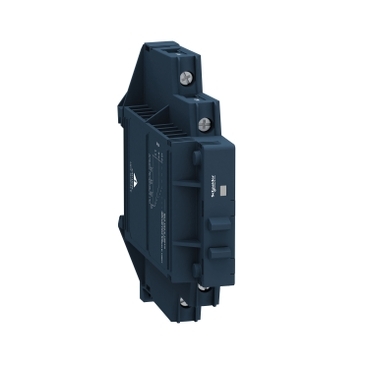

1 Phase Solid State Relay 280V | Zero Voltage Switching | DIN Rail Mount | 12A Rated Current | @Quantity of 1 | by Clipsal
The 1 Phase Solid State Relay 280V is designed for reliable switching in industrial automation and HVAC systems. Featuring zero voltage switching to minimize electrical noise and a compact DIN rail mount for easy installation, this relay is perfect for motor control and process control applications. With a rated current of 12A and a long operational life, it ensures efficient performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Phase Solid State Relay 280V | Zero Voltage Switching | DIN Rail Mount | 12A Rated Current | @Quantity of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSM1A112B7
Alternatively Known As: Solid State Relay, SSR, 1 Phase SSR, Clipsal Harmony Relay, SCHSSM1A112B7, DIN Rail Solid State Relay
Technical Specifications
- Type: 1 Phase Solid State Relay
- Model: SCHSSM1A112B7
- Input Voltage: 18–36V AC
- Output Voltage: 24–280V AC
- Rated Current: 12A
- Switching Type: Zero voltage switching
- Mounting: DIN rail
- Operating Temperature: -30°C to +80°C
- Dielectric Strength: 4000V RMS
- Response Time: <20ms
- Dimensions (H x L x W): 90mm x 100mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Solid state modular relay for reliable switching
- Zero voltage switching for reduced electrical noise
- DIN rail mount for easy installation
- Input voltage range: 18–36V AC
- Output voltage range: 24–280V AC
- Rated current: 12A
- Long operational life with no moving parts
- Compact design for space-saving installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation panels
- HVAC systems
- Lighting control
- Motor control
- Process control equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- No moving parts, reducing maintenance and waste
- Energy-efficient operation with minimal heat generation
- Longer lifespan compared to electromechanical relays
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 1 Phase Solid State Relay 280V SCHSSM1A112B7 is available for immediate purchase. Ideal for industrial automation, HVAC, and process control applications.
