1-Pole 63A Modular Switch | Red Toggle | Compact Design | Hager SBR164 by Hager
1-pole modular switch with 63A rating and red toggle—ideal for industrial, commercial, and residential circuit protection. Built for reliable circuit management, with compact design and secure screw terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

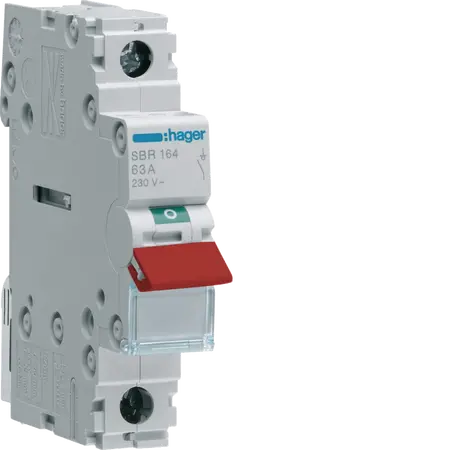

Product Name/Title: 1-pole, 63A Modular Switch 50mm² with Red Toggle
Brand: Hager
SKU: SBR164
Alternatively Known As: Hager SBR164 Switch
Technical Specifications
- Number of poles: 1
- Rated current: 63 A
- Breaking capacity 400 V AC23A: 1332 A
- Rated conditional short-circuit current Icc: 0.94 kA
- Rated operational voltage Ue: 230 V
- Type voltage supply: AC
- Ingress Protection (IP) class: IP20
- Frequency: 50 - 60 Hz
- Number of NO contacts: 1
- Operating temperature: -20 - 70 °C
- Cross-section flexible conductor: 6 - 35 mm²
- Cross-section rigid conductor: 6 - 50 mm²
- Number of mechanical operations: 40000
- Dimensions (H x L x W): 83mm x 68mm x 17.5mm
- Weight: 0.15 kg
Key Features
- Red toggle for clear visual indication
- Compact design with a single module
- Screw terminal for secure connections
- Aluminum terminals for improved conductivity
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended.
Applications
- Industrial electrical systems
- Commercial distribution boards
- Residential circuit protection
Standards & Compliance
- Complies with IEC 60947-3 for switch devices
Environmental Benefits
- Designed to reduce energy losses
- Long-lasting durability reducing frequent replacements
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The 1-pole, 63A Modular Switch with Red Toggle is available for immediate purchase. Ideal for industrial, commercial, and residential applications, ensuring reliable circuit management.
