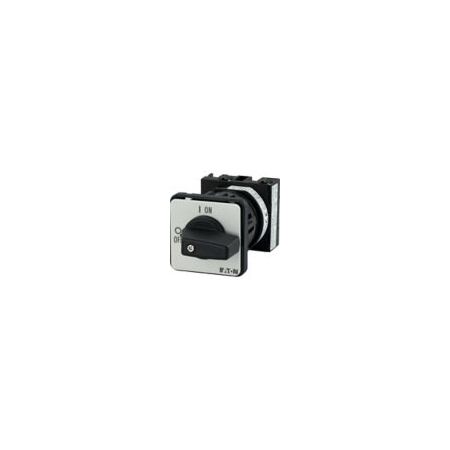

1 Pole On-Off Switch | 20A Rated Current | NEMA 12 & IP65 Protection | 90° Switching Angle by Eaton
1 pole on-off switch with a rated operational current of up to 20A and a 90° switching angle—ideal for industrial control panels and motor disconnect applications. Built for durability with NEMA 12 and IP65 protection, ensuring reliable operation in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Pole On-Off Switch | 20A Rated Current | NEMA 12 & IP65 Protection | 90° Switching Angle by Eaton
Brand: Eaton
SKU: Y7-69725
Alternatively Known As: Eaton T0 On-Off Switch, Eaton T0-1-8200 Switch, 1 Pole 20A Switch, Industrial On-Off Switch
Technical Specifications
- Number of poles: 1
- Rated operational current (Ie) at AC-3, 220-240 V: 11.5 A
- Rated operational current (Ie) at AC-3, 380-415 V: 11.5 A
- Rated operational current (Ie) at AC-3, 500 V: 9 A
- Rated operational current (Ie) at AC-3, 660-690 V: 4.9 A
- Rated operational current (Ie) at AC-21, 440 V: 20 A
- Rated breaking capacity at 220/230 V: 100 A
- Rated breaking capacity at 400/415 V: 110 A
- Rated breaking capacity at 500 V: 80 A
- Rated breaking capacity at 660/690 V: 60 A
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Operating frequency: 1200 operations/hour
- Mechanical lifespan: 400,000 operations
- Degree of protection: NEMA 12, IP65 front side
- Terminal capacity: 1 x (0.75 - 2.5) mm² flexible with ferrules, 1 x (1 - 2.5) mm² solid or stranded
- Screw size: M3.5 terminal screw
- Tightening torque: 1 Nm
- Switching angle: 90°
- Ambient operating temperature: -25 °C to 50 °C
- Shock resistance: 15 g mechanical
- Dimensions (H x L x W): 48mm x 96mm x 48mm
- Weight: 0.101 kg
Key Features
- 1 pole on-off switch with 90° switching angle
- Rated operational current up to 20 A
- Center mounting with black thumb grip and front plate
- Degree of protection: NEMA 12, IP65 front side
- Mechanical lifespan of 400,000 operations
- Suitable for front mounting center branch circuits
- Rated impulse withstand voltage 6000 V AC
- Shock resistance 15 g mechanical
- Operating temperature range -25 °C to 50 °C
- Rated breaking capacity up to 110 A depending on voltage
- Rated operational power up to 7.5 kW depending on voltage
- Terminal capacity supports flexible and solid conductors 0.75 - 2.5 mm²
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial control panels
- Motor disconnect applications
- Branch circuit switching
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- High mechanical lifespan minimizes resource consumption
- Complies with safety standards to ensure reliable operation
Warranty Information
Standard Eaton warranty against manufacturing defects applies. Refer to Eaton warranty policy for details.
Available Now
The Eaton Moeller T0-1-8200/EZ On-Off Switch is available for immediate purchase, ideal for industrial and commercial electrical control applications.
