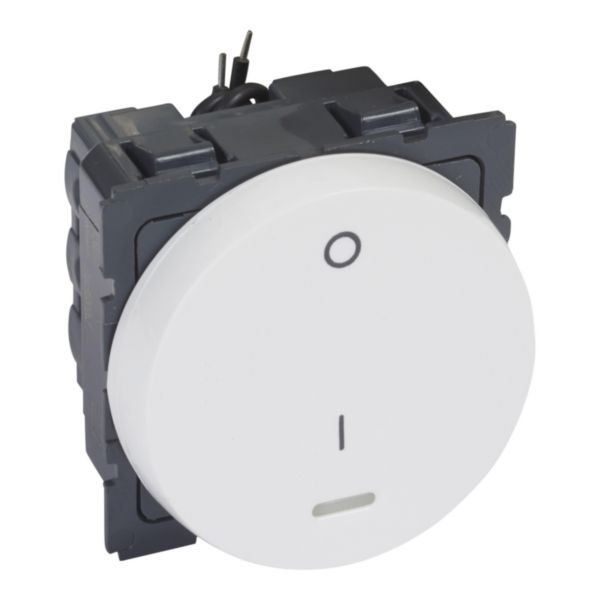

1-Way Double Pole Switch with Indicator | 20 AX Rated | IP40 Protection | Round Design | @EA of 1 | by Legrand
The 1-Way Double Pole Switch with Indicator is designed for reliable electrical control, featuring a 20 AX rated current at 250 V~ and a red LED indicator for switch status. Ideal for residential, commercial, and industrial applications, this switch is made from halogen-free thermoplastic and offers IP40 protection against solid objects, ensuring durability and safety in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-Way Double Pole Switch with Indicator | 20 AX Rated | IP40 Protection | Round Design | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573076
Alternatively Known As: Double Pole Light Switch with Indicator, 20A Double Pole Switch, Legrand Arteor Switch, 1-Way Double Pole Switch
Technical Specifications
- Switch type: 1-way double pole
- Rated current: 20 A
- Rated voltage: 250 V AC
- Switching current for fluorescent lamps: 20 AX
- Operating temperature range: -5 to 50 °C
- Storage temperature range: -10 to 70 °C
- Cable section compatibility: 6-6 mm²
- Mounting method: Modular device with snap fastening
- Material: Halogen free thermoplastic
- IP rating: IP40
- Impact resistance: IK04
- Lighting: LED indicator (exchangeable)
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- 1-way double pole switch with indicator
- 20 AX rated current at 250 V~
- Red LED indicator for switch status
- Round design with 2 modules
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Screwed terminal connection
- Halogen free thermoplastic material
- Glossy white finish
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential: Home electrical wiring and lighting control
- Commercial: Office and retail electrical installations
- Industrial: Control of lighting and electrical circuits requiring double pole switching
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- LED indicator consumes low power, enhancing energy efficiency
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 1-way double pole switch with indicator is available for immediate purchase, ideal for residential, commercial, and industrial electrical wiring applications.
