Trade Discount 20%

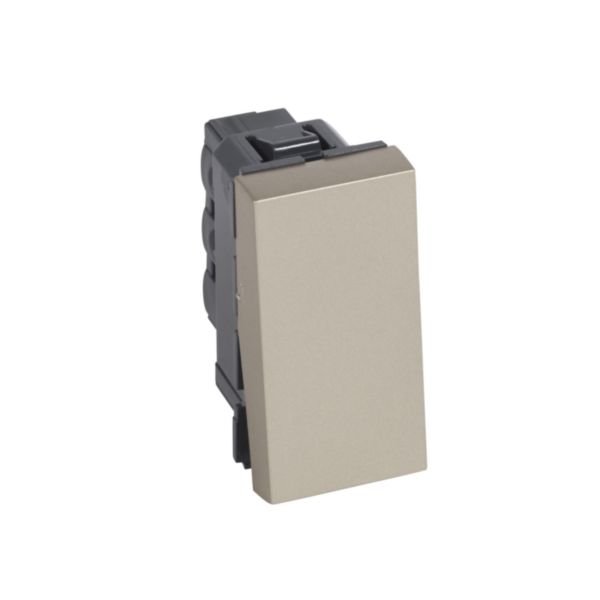

1-Way Push-Button Switch 6A 250V | Square Module Design | Champagne Finish | @EA of 1 | by Legrand
The 1-way push-button switch with a 6A rated current at 250V is perfect for home lighting and control systems. Featuring a stylish square module design in champagne color with a glossy lacquered finish, this switch is made from halogen-free thermoplastic for enhanced safety and durability. Ideal for both residential and commercial applications, it ensures secure wiring with a screwed terminal connection and is IP40 rated for protection against solid objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-Way Push-Button Switch 6A 250V | Square Module Design | Champagne Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 570000
Alternatively Known As: Legrand Arteor push button switch, 1 module push button, 6A push button switch, square push button switch, champagne push button
Technical Specifications
- Rated current: 6 A
- Nominal voltage: 250 V AC
- Number of modules: 1
- Number of poles: 1
- Number of normally open contacts: 1
- Number of normally closed contacts: 0
- Contactless type: No
- Connection type: Screwed terminal
- Mounting method: Snap-on module frame
- Material: Thermoplastic, halogen free
- Surface finish: Glossy lacquered
- Colour: Titanium (Champagne)
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 1-way push-button switch with 6 A rated current at 250 V~
- Square 1 module design in champagne color with glossy lacquered finish
- Thermoplastic material, halogen free for safety and durability
- IP40 rated for protection against solid objects
- IK04 impact resistance rating
- Screwed terminal connection for secure wiring
- Snap-on mounting method compatible with modular frames
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Residential: Home lighting and control systems
- Commercial: Office and retail electrical switching
- General: Modular electrical installations requiring push-button control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free thermoplastic material reduces environmental impact
- Durable design extends product life and reduces waste
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 1-way push-button 6A 250V 1 module square version in champagne is available for immediate purchase, ideal for residential and commercial electrical switching applications.
