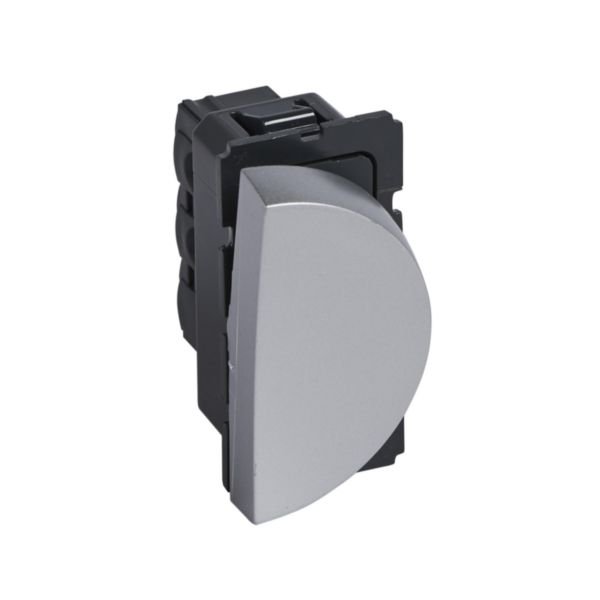

1-Way Switch 10 AX 250 V~ | Round Aluminium Design | IP40 Rated | @Each of 1 | by Legrand
The 1-way switch 10 AX 250 V~ is perfect for home and office lighting control, featuring a stylish round aluminium design and IP40 protection against solid objects. Built for durability with IK04 impact resistance, this modular switch is ideal for residential and commercial applications, ensuring reliable performance and aesthetic appeal.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-Way Switch 10 AX 250 V~ | Round Aluminium Design | IP40 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 571063
Alternatively Known As: Legrand Arteor Single Pole Switch, 10 Amp Switch, Aluminium Round Switch, 1 Module Switch
Technical Specifications
- Rated Voltage: 250 V AC
- Rated Current: 10 A
- Switch Type: 1-way, 1-pole rocker switch
- Number of Modules: 1
- Material: Halogen free thermoplastic
- Surface Finish: Matt lacquered aluminium
- Degree of Protection: IP40
- Impact Resistance: IK04
- Connection Type: Screwed terminal
- Operating Temperature: -5 to 50 °C
- Storage Temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable Section: 4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 1-way switch with 10 AX rated current for reliable switching
- Round version with soft aluminium finish for aesthetic appeal
- Modular device designed for domestic switching applications
- IP40 rated for protection against solid objects
- IK04 impact resistance for durability
- Screwed terminal connection for secure wiring
- Halogen free thermoplastic material with lacquered matt surface
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Home lighting control
- Commercial: Office and retail lighting systems
- General: Domestic switching devices for lighting and appliances
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable construction extends product lifespan, reducing waste
Warranty Information
Legrand offers a standard 3-year warranty covering manufacturing defects and performance issues.
Available Now
The Legrand Arteor 1-way switch 10 AX 250 V in aluminium round version is available for immediate purchase, ideal for residential and commercial lighting control applications.
