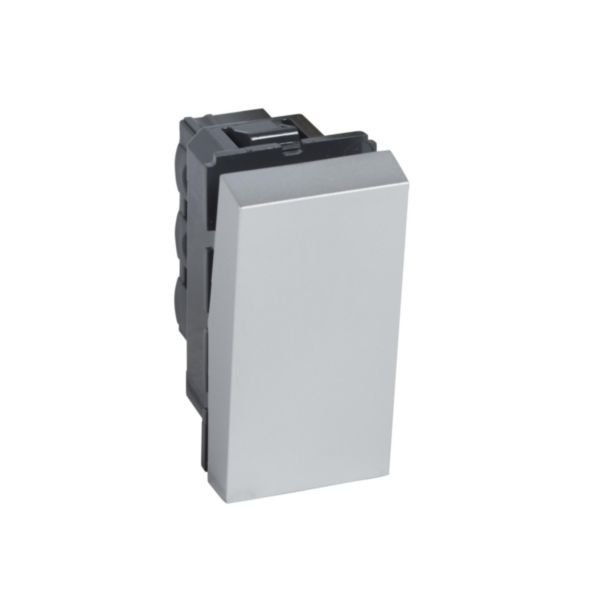

1-Way Switch 10 AX 250 V~ | Square Module | Matt Aluminium Finish | @Each of 1 | by Legrand
The 1-way switch 10 AX 250 V~ is designed for reliable home and office lighting control. Featuring a square module design and a modern matt aluminium finish, this switch is made from halogen-free thermoplastic for enhanced safety and durability. With an IP40 rating for protection against solid objects, it's perfect for residential and commercial applications, ensuring a stylish and functional addition to any space.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-Way Switch 10 AX 250 V~ | Square Module | Matt Aluminium Finish | @Each of 1 | by Legrand
Brand: Legrand
SKU: 571004
Alternatively Known As: Legrand Arteor Single Pole Switch, 10 Amp Light Switch, 1 Module Square Switch Aluminium
Technical Specifications
- Rated current: 10 A
- Rated voltage: 250 V AC
- Switch type: 1-way rocker switch
- Number of modules: 1
- Material: Halogen-free thermoplastic
- Surface finish: Matt lacquered aluminium
- Degree of protection: IP40
- Impact resistance: IK04
- Connection type: Screwed terminal
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section compatibility: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 1-way switch with 10 AX rated current for reliable switching
- Square version with 1 module size for modular installation
- Soft aluminium matt finish for modern aesthetic
- Halogen-free thermoplastic material for safety and durability
- IP40 rated for protection against solid objects
- IK04 impact resistance for mechanical robustness
- Screwed terminal connection for secure wiring
- Compatible with standard modular frames and plates
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Home lighting control
- Commercial: Office and retail lighting systems
- General: Domestic switching devices for lighting circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact during disposal
- Durable thermoplastic construction extends product lifespan, reducing waste
Warranty Information
Legrand offers a standard 3-year warranty covering manufacturing defects and performance issues.
Available Now
The Legrand Arteor 1-way switch 10 AX 250 V~ 1 module square aluminium version is available for immediate purchase, ideal for residential and commercial lighting control applications.
