10/100Base-TX to 100Base-FX Singlemode SC Fibre Media Converter | Low Latency < 4.2 μs | 100/200 Mbps Speeds | by SERVEREDGE
The 10/100Base-TX to 100Base-FX Singlemode SC Fibre Media Converter is designed for seamless network infrastructure, converting Ethernet to fiber with low latency under 4.2 μs. Ideal for enterprise and data center applications, it supports 100/200 Mbps speeds and features a robust store-and-forward switching method, ensuring efficient data handling and reliable connectivity over long distances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

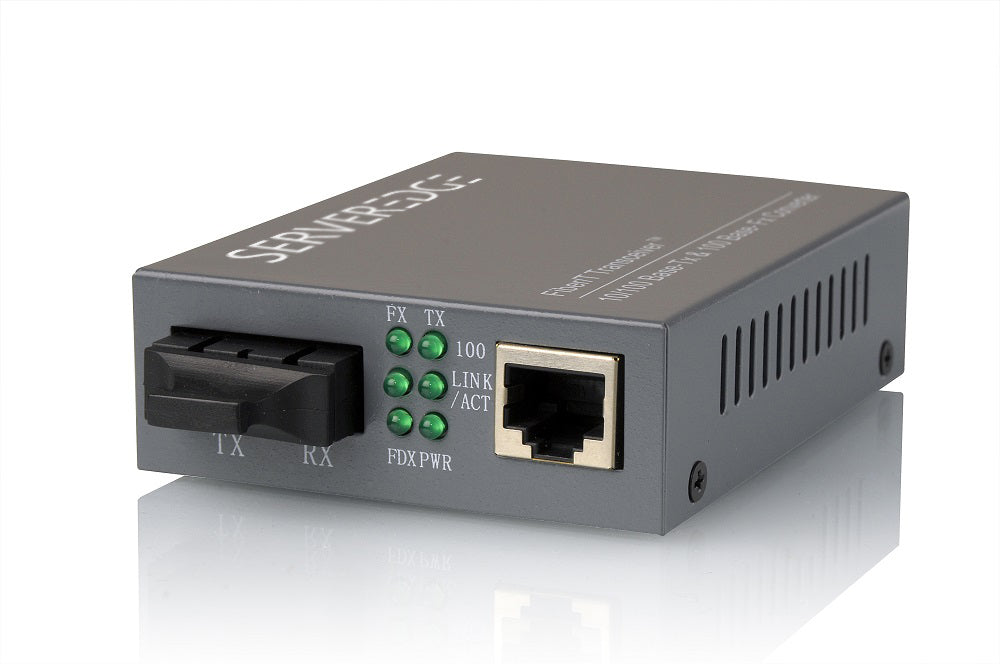

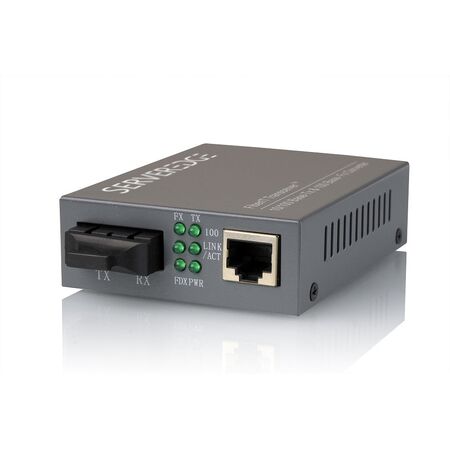

Product Name/Title: 10/100Base-TX to 100Base-FX Singlemode SC Fibre Media Converter | Low Latency < 4.2 μs | 100/200 Mbps Speeds | by SERVEREDGE
Brand: SERVEREDGE
SKU: SED-100SSC-20
Alternatively Known As: Fiber Media Converter, Ethernet to Fiber Converter, 10/100Base-TX to 100Base-FX Converter, Singlemode Fiber Converter
Technical Specifications
- Latency: < 4.2 μs (LIFO)
- Throughput @ 100Base: 148,809 pps (64-byte packets)
- Speed: 100BaseTX: 100/200 Mbps half/full duplex
- Speed: 10BaseT: 10/20 Mbps half/full duplex
- Switching Method: Store-and-Forward
- Maximum MAC Addresses: 1,024 entries
- Memory: 256 KB
- Fiber Interface Type: MQW Laser
- Wavelength: 1300 nm nominal (1260 nm max, 1360 nm min)
- Maximum Output Power: -7.0 dBm
- Minimum Output Power: -15.0 dBm
- Sensitivity: -34.0 dBm
- Maximum Input Power: -7.0 dBm
- Link Power Budget: 19.0 dB
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -25°C to 70°C
- Relative Humidity: 10% to 90%, non-condensing
- Power: External 12V DC, 600 mA adapter
- Power Consumption: 5 Watts maximum
- Dimensions (H x L x W): 23mm x 81mm x 110mm
- Weight: 0.15 kg
Key Features
- Low latency of less than 4.2 μs (LIFO)
- Supports 100BaseTX speeds of 100/200 Mbps for half/full duplex
- Supports 10BaseT speeds of 10/20 Mbps for half/full duplex
- Store-and-Forward switching method
- Maximum MAC address entries: 1,024
- 256 KB memory for efficient data handling
- Singlemode fiber interface with MQW Laser
- Wavelength nominal at 1300 nm
- Link power budget of 19.0 dB
- Compact and lightweight design
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper fiber optic and electrical connections.
Applications
- Network infrastructure for converting 10/100Base-TX Ethernet to 100Base-FX singlemode fiber
- Enterprise and data center fiber optic network connections
- Extending network reach over long distances using singlemode fiber
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables network extension over fiber reducing the need for additional network hardware
- Supports energy-efficient data transmission with low power consumption of 5 Watts maximum
Warranty Information
Standard manufacturer warranty applies; please refer to SERVEREDGE for specific warranty terms.
Available Now
The Serveredge 10/100Base-TX to 100Base-FX Singlemode SC Fibre Media Converter is available for immediate purchase, ideal for enterprise and data center network infrastructure requiring reliable fiber optic connectivity.
