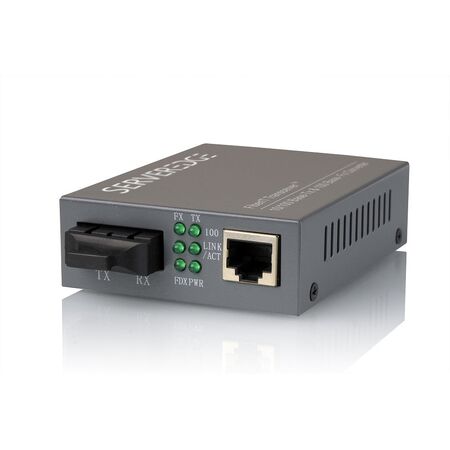

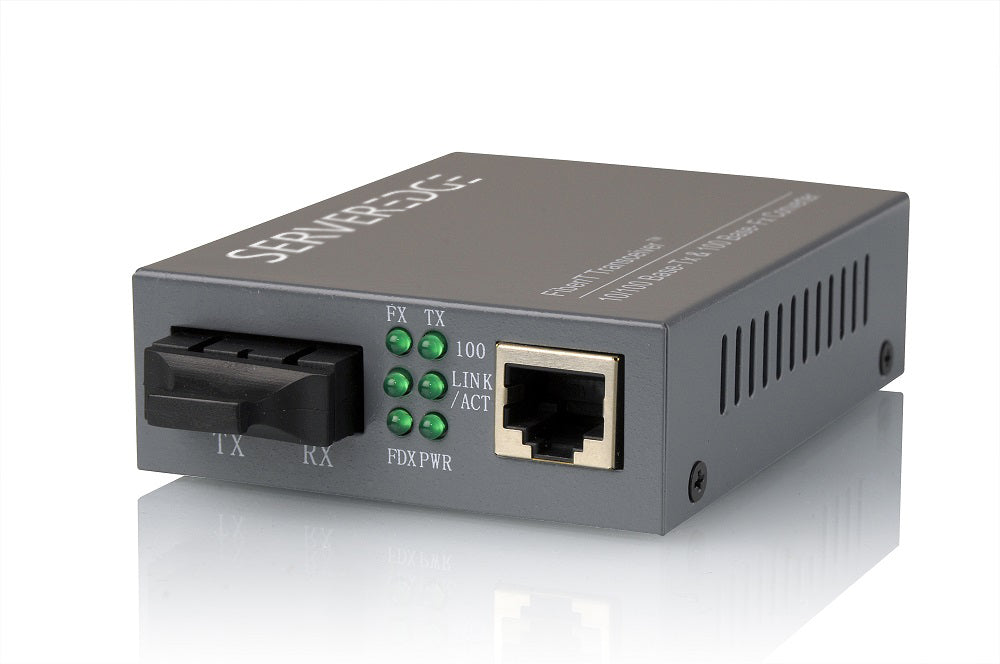

10/100Base-TX to 100Base-FX Multimode SC Fibre Media Converter | Auto-Negotiation RJ45 | 1024 MAC Address Capacity | by SERVEREDGE
The 10/100Base-TX to 100Base-FX Multimode SC Fibre Media Converter is designed for seamless network infrastructure upgrades, converting Ethernet to fiber with ease. Featuring an auto-negotiation RJ45 connector and a capacity for 1024 MAC addresses, this converter is perfect for enterprise and telecommunications environments, ensuring reliable connections over multimode fiber up to 10 km.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10/100Base-TX to 100Base-FX Multimode SC Fibre Media Converter | Auto-Negotiation RJ45 | 1024 MAC Address Capacity | by SERVEREDGE
Brand: SERVEREDGE
SKU: SED-100MSC
Alternatively Known As: Fiber Media Converter, Ethernet to Fiber Converter, 10/100Base-TX to 100Base-FX Converter, Multimode Fiber Converter
Technical Specifications
- Latency: < 4.2 μs (LIFO)
- Throughput @ 100Base: 148,809 packets per second (64-byte packets)
- Speed: 100BaseTX - 100/200 Mbps (half/full duplex), 10BaseT - 10/20 Mbps (half/full duplex)
- Switching Method: Store-and-Forward
- Maximum MAC Addresses: 1,024 entries
- Memory: 256 KB
- Fiber Interface: Multimode SC Connector
- Wavelength: 1300 nm nominal (1270 nm max, 1380 nm min)
- Maximum Output Power: -14.0 dBm
- Minimum Output Power: -20.0 dBm
- Sensitivity: -33.0 dBm
- Maximum Input Power: -8.0 dBm
- Link Power Budget: 13.0 dB
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -25°C to 70°C
- Relative Humidity: 10% to 90%, non-condensing
- Power Input: 100-250 VAC, 50-60 Hz, 0.28A
- Power Output: 5 V DC, 1.0A ± 5%
- Dimensions (H x L x W): 23mm x 81mm x 110mm
- Weight: 0.15 kg
Key Features
- Built-in twisted-pair port 10/100 switch
- Auto-negotiation RJ45 connector with Auto-MDIX
- SC connector for fiber interface
- LED indicators for functions, links, and activity
- Link fault signaling compatible with managed switches
- 1024 MAC address capacity
- Store and forward architecture
- Full and half duplex operation
- Singlemode fiber spans up to 10 km
- Wall or chassis mountable
- Compliant with IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, and IEEE 802.3u 100BaseFX standards
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure proper setup and compliance with electrical and network standards.
Applications
- Network infrastructure for converting 10/100Base-TX Ethernet to 100Base-FX multimode fiber
- Suitable for extending network connections up to 10 km over fiber optic cable
- Ideal for enterprise, data center, and telecommunications environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables network extension over fiber, reducing electromagnetic interference and improving network reliability
- Supports energy-efficient network infrastructure by enabling use of fiber optic cabling
Warranty Information
Standard manufacturer warranty applies; please refer to SERVEREDGE warranty policy for details.
Available Now
The Serveredge 10/100Base-TX to 100Base-FX Multimode SC Fibre Media Converter is available for immediate purchase, ideal for network infrastructure upgrades and fiber optic extension applications.
