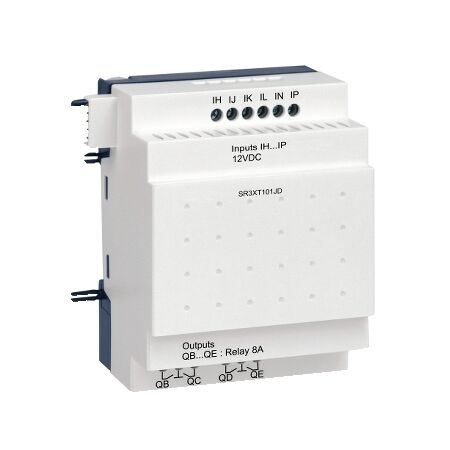

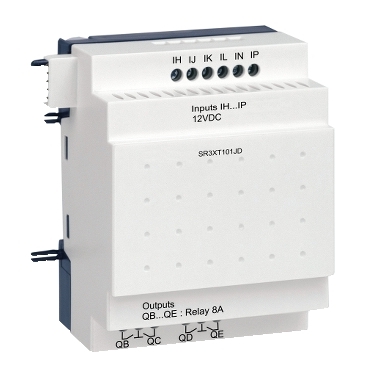

10 I/O Relay Extension Module for 12V DC | 6 Digital Inputs & 4 Relay Outputs | DIN Rail Mountable | @Pack of 1 | by Clipsal
The 10 I/O Relay Extension Module for 12V DC is designed to expand your Zelio Logic smart relays with 10 additional I/O points, including 6 digital inputs and 4 relay outputs. Perfect for industrial automation and building management systems, this compact DIN rail mountable module ensures easy installation and efficient control, making it ideal for process control and machine automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10 I/O Relay Extension Module for 12V DC | 6 Digital Inputs & 4 Relay Outputs | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSR3XT101JD
Alternatively Known As: Zelio Logic I/O Extension Module, 10 I/O Relay Extension, Schneider Electric SR3XT101JD, 12V DC I/O Expansion Module, Smart Relay Expansion
Technical Specifications
- Number of I/O: 10 (6 digital inputs, 4 relay outputs)
- Input voltage: 12V DC
- Relay output type: SPDT (Single Pole Double Throw)
- Mounting: DIN rail
- Compatible with Zelio Logic smart relays
- Operating temperature: -20°C to +55°C
- IP20 protection rating
- Dimensions (H x L x W): 60mm x 80mm x 71mm
- Weight: 0.15 kg
Key Features
- Discrete I/O extension module for Zelio Logic smart relays
- Provides 10 additional I/O points (6 digital inputs, 4 relay outputs)
- Operates at 12V DC
- Compact DIN rail mountable design
- Plug-and-play extension for easy system expansion
Professional Installation Requirements
- Installation must be performed by a qualified electrician or automation technician to ensure compliance with electrical safety standards.
Applications
- Industrial automation control panels
- Building management systems
- Process control
- Machine automation
- Remote I/O expansion for programmable logic controllers (PLCs)
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient automation, reducing energy waste through optimized control.
- Compact design minimizes material usage and installation footprint.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Zelio Logic 10 I/O Relay Extension Module (SCHSR3XT101JD) is available for immediate purchase. Ideal for expanding I/O capacity in industrial automation and building management systems.
