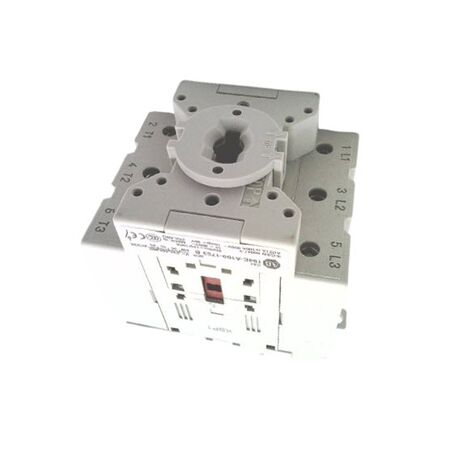

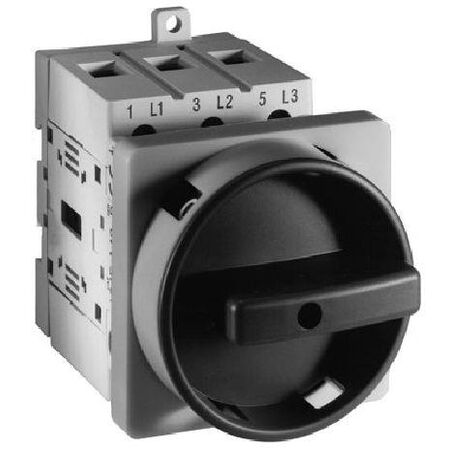

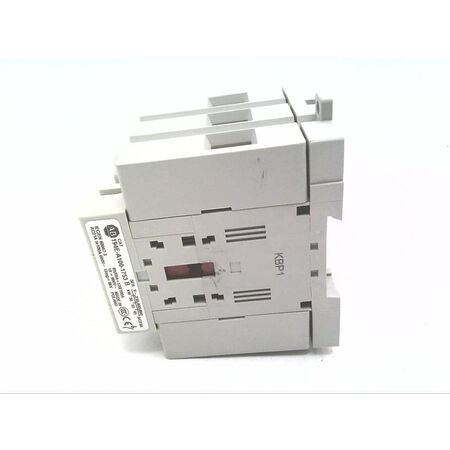

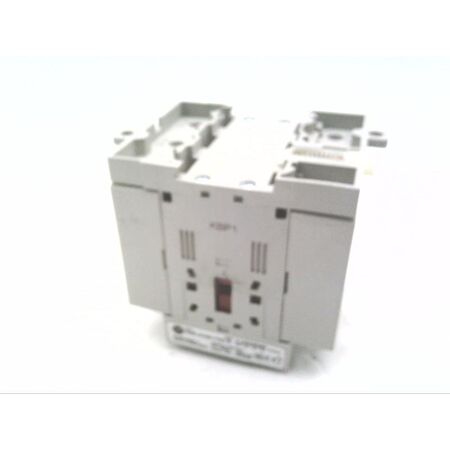

100 Amp Load Switch | 3 Pole & 2 Position | Small-Frame Design | by Allen-Bradley
The 100 Amp Load Switch from the Allen-Bradley 194E Series is designed for industrial electrical control systems, featuring a 3-pole, 2-position configuration and a small-frame inductive load design. Ideal for motor control and power distribution, this open-type switch ensures reliable performance and efficient load management, making it perfect for manufacturing and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Series: 194E
- Load Type: Inductive
- Frame Size: Small-frame
- Mounting: Base/DIN rail
- Switch Type: Open type
- Current Rating: 100 Amp
- Poles: 3
- Positions: 2
- Handle Model: 194L-HE6N-175
- Dimensions (H x L x W): 120mm x 90mm x 70mm
- Weight: 1.5 kg
Key Features
- 100 Amp load capacity
- 3 pole, 2 position switch
- Small-frame inductive load switch
- Base/DIN rail mounting
- Open type switch design
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial electrical control systems
- Motor control and protection
- Power distribution panels
- Manufacturing and automation equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
- Supports efficient electrical load management to reduce energy losses.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 194E Series 100 Amp Load Switch is available for immediate purchase, ideal for industrial and commercial electrical control applications.
