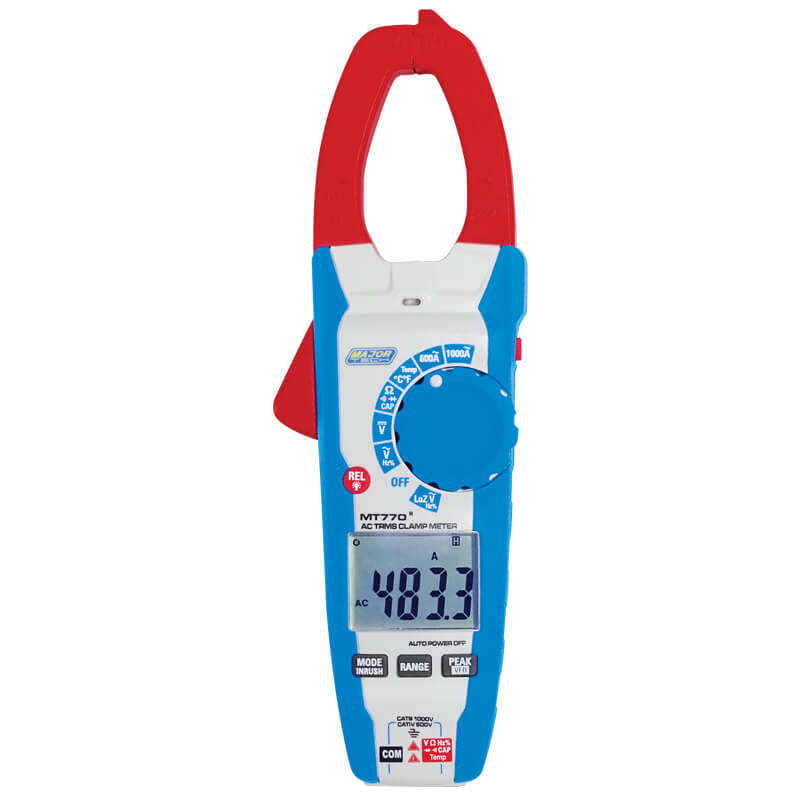

1000A AC True RMS Clamp Meter | CAT IV 600V Safety Rating | 6000 Count Measurement | Large Backlit LCD by Majortech
The 1000A AC True RMS Clamp Meter offers CAT IV 600V safety rating and 6000 count true RMS measurement—ideal for industrial and commercial electrical applications. Built for professionals, it features a large backlit LCD for easy reading and measures AC/DC voltage, temperature, frequency, and more.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1000A AC True RMS Clamp Meter | CAT IV 600V Safety Rating | 6000 Count Measurement | Large Backlit LCD by Majortech
Brand: Majortech
SKU: MT770
Alternatively Known As: True RMS Clamp Meter, Digital Clamp Meter, AC Clamp Meter, MT770 Clamp Meter
Technical Specifications
- DC Voltage Range: 0.1mV to 1000V, Resolution: 1mV, Accuracy: ±(1.5% + 2 digits)
- AC Voltage Range: 1mV to 1000V, Resolution: 1mV, Accuracy: ±(1.5% + 5 digits)
- Resistance Range: 0.1Ω to 60.00MΩ, Resolution: 0.1Ω, Accuracy: ±(1.5% + 2 digits)
- Frequency Range: 0.001Hz to 99.99kHz, Resolution: 0.01Hz, Accuracy: ±(1.2% + 5 digits)
- Capacitance Range: 0.01nF to 100mF, Resolution: 0.01nF, Accuracy: ±(3.0% + 5 digits)
- Temperature Range: -20°C to 1000°C, Resolution: 0.1°C, Accuracy: ±(3.0% + 5°C digits)
- Duty Cycle Range: 10% to 90%, Resolution: 0.001, Accuracy: ±(1.2% + 2 digits)
- Dimensions (H x L x W): 200mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features
- CAT IV 600V safety rating
- 6000 count True RMS measurement
- Large backlit LCD display for easy reading
- Measures AC/DC voltage up to 1000V
- Measures temperature, frequency, capacitance, resistance
- 100ms Inrush current and Peak Voltage measurement
- VFD function for stable voltage measurement in Variable Frequency Drives
- Low Z range with low pass filter to eliminate ghost voltages
- Relative mode for capacitance zero and offset adjustments
- Non-contact voltage detection
- Data hold function
- Built-in flashlight for use in dimly lit areas
- Double moulded rubber housing for durability
Professional Installation Requirements
- Professional use recommended; no special installation required but training in electrical safety and meter operation is advised.
Applications
- Industrial: Mining, electrical maintenance, and troubleshooting
- Commercial: HVAC, electrical installations, and repair
- General: Electrical measurements in various environments
Standards & Compliance
- Complies with AS/NZS 61010 for electrical test and measurement equipment safety
Environmental Benefits
- Accurate measurements reduce energy waste and improve system efficiency
- Durable design reduces need for frequent replacements
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech MT770 1000A AC True RMS Clamp Meter is available now for immediate purchase. Ideal for industrial, mining, and electrical maintenance applications.
