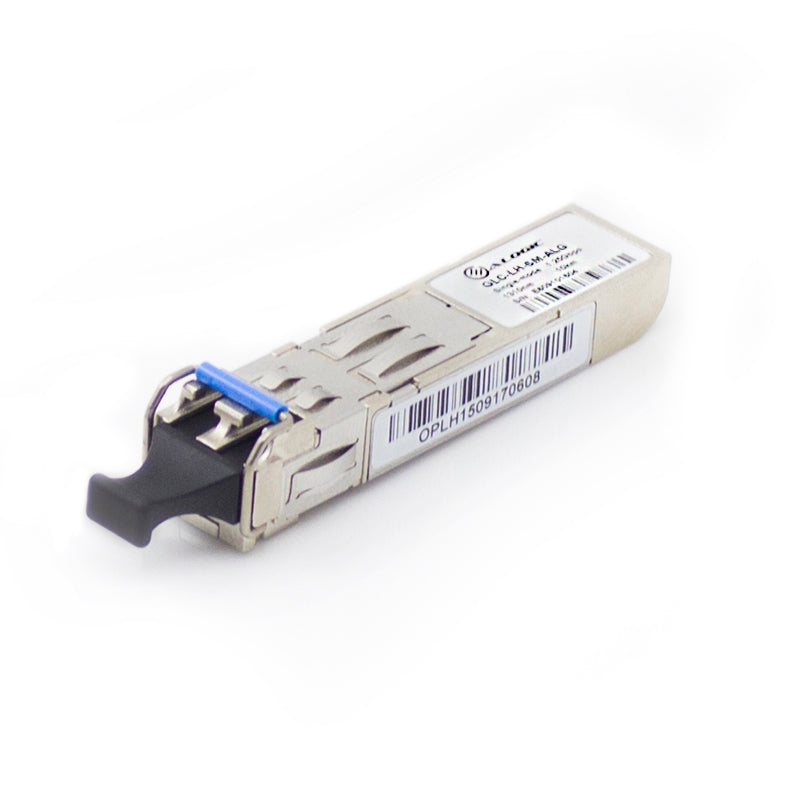

1000Base-LX SMF SFP Transceiver Module | Low Power Consumption | All-Metal Housing | Hot Pluggable | by SERVEREDGE
The 1000Base-LX SMF SFP Transceiver Module is designed for high-speed Gigabit Ethernet networking and Fiber Channel systems. With low power consumption and an all-metal housing for superior EMI performance, this module is perfect for data centers and enterprise networks. Its hot pluggable feature ensures easy installation and maintenance, making it an ideal choice for telecommunications and high-speed data transmission.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1000Base-LX SMF SFP Transceiver Module | Low Power Consumption | All-Metal Housing | Hot Pluggable | by SERVEREDGE
Brand: SERVEREDGE
SKU: GLC-LH-SM20-ALG
Alternatively Known As: 1000Base-LX SFP Transceiver, mini-GBIC Module, Gigabit Ethernet SFP, Fiber Channel SFP Module
Technical Specifications
- SFP Multi-Source Agreement compliance
- Compliant with Fiber Channel 100-SM-LC-L standard
- Compliant with IEEE802.3z Gigabit Ethernet standard
- Duplex LC connector
- Differential LVPECL inputs and outputs
- Single power supply 3.3V
- TTL signal detect indicator
- Class 1 laser product compliant with EN 60825-1
- Dimensions (H x L x W): 8mm x 56mm x 13mm
- Weight: 0.05 kg
Key Features
- Low power consumption
- Compliant with MSA Specifications
- All-metal housing for superior EMI performance
- Cost effective solution enabling higher port densities and greater bandwidth
- Industry standard small form pluggable (SFP) package
- Duplex LC connector
- Differential LVPECL inputs and outputs
- Single power supply 3.3V
- TTL signal detect indicator
- Hot pluggable
- Class 1 laser product compliant with EN 60825-1
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by qualified network technicians to ensure proper handling and compliance with safety standards.
Applications
- Gigabit Ethernet networking
- Fiber Channel 100-SM-LC-L compliant systems
- Data centers and enterprise network infrastructure
- Telecommunications and high-speed data transmission
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage and operational costs
- RoHS compliant, ensuring reduced hazardous substances and environmental impact
Warranty Information
1 Year warranty against manufacturing defects.
Available Now
The SERVEREDGE 1000Base-LX SMF SFP Transceiver Module is available now for immediate purchase. Ideal for upgrading and expanding high-speed network infrastructure.
