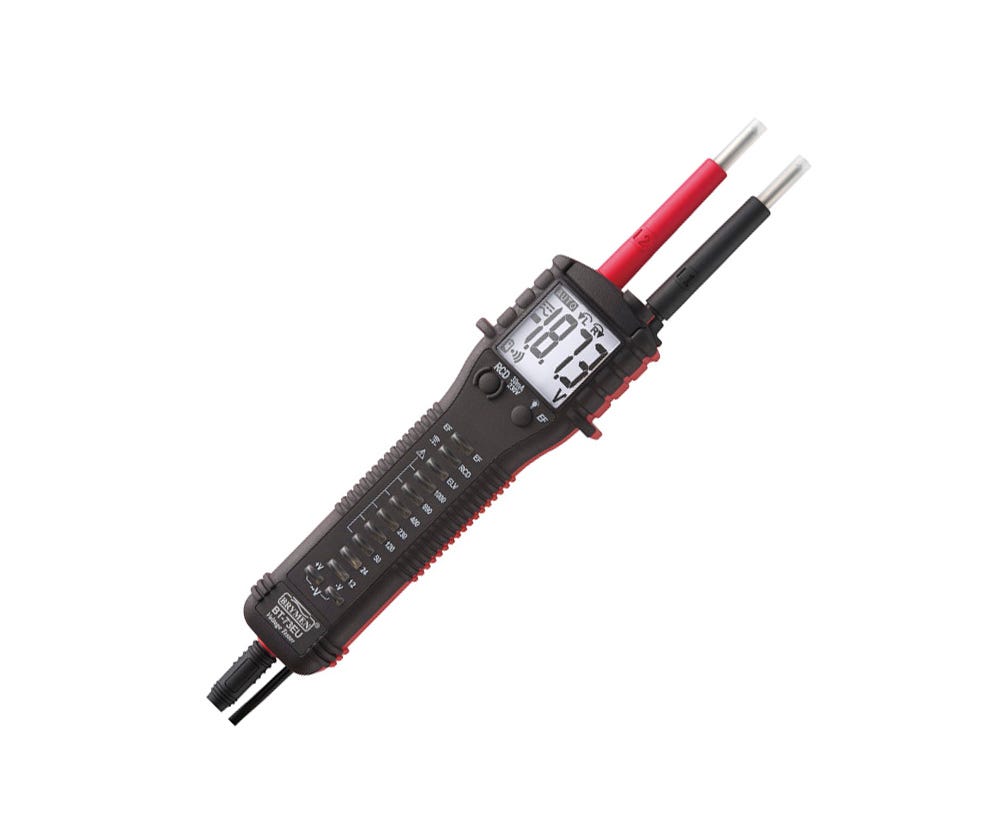

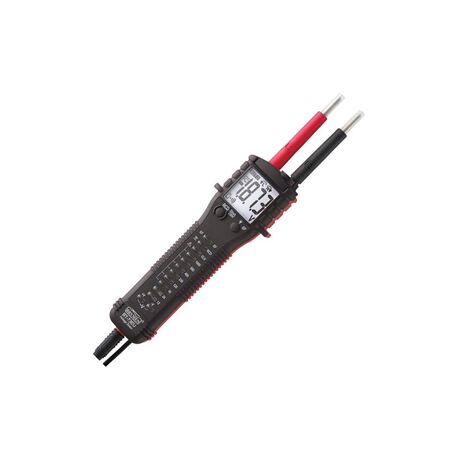

1000V LCD + LED Voltage Tester | AC & DC Measurement | True RMS | by Cabac
The 1000V LCD + LED Voltage Tester is designed for accurate AC and DC voltage measurements, featuring both LED and LCD displays for easy reading. Ideal for electricians and technicians, it offers true RMS measurement, polarity indication, and RCD testing capabilities, ensuring safety and efficiency in electrical testing across residential, commercial, and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage measurement: AC & DC up to 1000V
- Display: LED and LCD voltage indication
- Safety standards: EN61010 CATIV 600V, EN61243-3
- Test probes: 4 mm and 2 mm diameter
- True RMS measurement
- Audible continuity test
- Optional pluggable test lead up to 3m
- Dimensions (H x L x W): 180mm x 30mm x 60mm
- Weight: 0.3 kg
Key Features
- Voltage tester for AC & DC with LED and LCD voltage display
- Polarity and phase rotation indication
- EF Tester and RCD trip test capabilities
- True RMS measurement for accurate readings
- Audible continuity test
- Test probes with 4 mm and 2 mm diameter for versatile applications
- Optional pluggable test lead available up to 3 meters long
- Complies with EN61010 CATIV 600V and EN61243-3 safety standards
Professional Installation Requirements
- No professional installation required; suitable for use by qualified electricians and trained personnel.
Applications
- Electrical testing for AC & DC voltage
- Polarity and phase rotation indication
- EF (Earth Fault) testing
- RCD trip testing
- Continuity testing in electrical circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps ensure electrical safety and efficiency, reducing energy waste and electrical faults.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Cabac 1000V LCD + LED Voltage Tester BT-73EU is available now for immediate purchase. Ideal for electrical testing in residential, commercial, and industrial applications.
