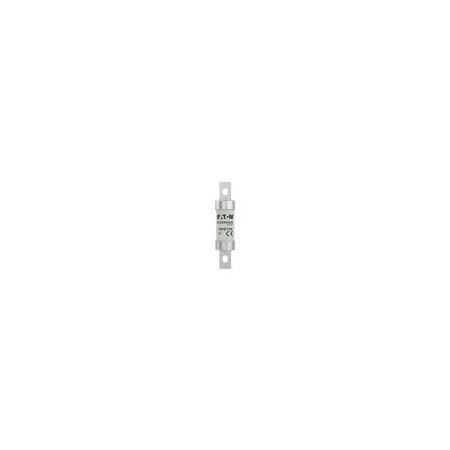

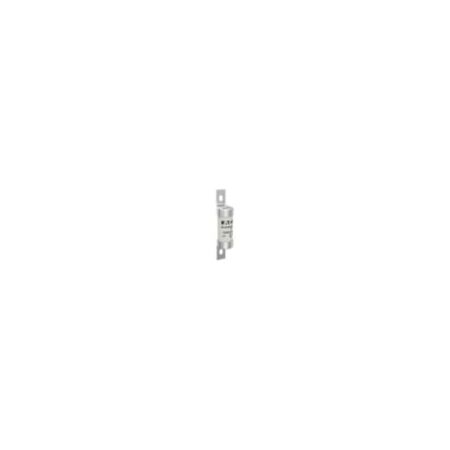

100A 500V AC BS88 gG Fuse | 80 kA Breaking Capacity | Offset Bolted Tags by Eaton
The 100A 500V AC BS88 gG fuse is designed for electrical protection in low voltage circuits, featuring an 80 kA breaking capacity and offset bolted tags for secure fitting. Ideal for industrial and commercial installations, this fuse complies with BS88 standards and is RoHS compliant for reduced hazardous substances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 100A 500V AC BS88 gG Fuse | 80 kA Breaking Capacity | Offset Bolted Tags by Eaton
Brand: Eaton
SKU: OSD100
Alternatively Known As: BS88 Fuse, Low Voltage Fuse, 100 Amp Fuse, 500V AC Fuse, gG Fuse
Technical Specifications
- Amperage Rating: 100 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 80 kA
- Class: gG/gL
- Fuse Type: OSD
- Construction: BS88
- Fitted with: Offset bolted tags
- Suitable for: CM100F Red spot fuse holder, SC100 Safeclip fuse holder
- Dimensions (H x L x W): 21mm x 95mm x 21mm
- Weight: 0.056 kg
Key Features
- 100A amperage rating
- 500V AC voltage rating
- Breaking capacity of 80 kA
- Class gG/gL fuse type for general purpose protection
- Offset bolted tags for secure fitting
- Complies with BS88 construction standard
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse fitting.
Applications
- Electrical protection in low voltage circuits
- Industrial and commercial electrical installations
- Use with CM100F Red spot fuse holder and SC100 Safeclip fuse holder
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable design reduces waste and replacement frequency
Warranty Information
Standard Eaton warranty against manufacturing defects applies.
Available Now
The Eaton OSD 100A 500V AC BS88 gG Fuse is available now for immediate purchase. Ideal for electrical protection in industrial and commercial low voltage applications.
