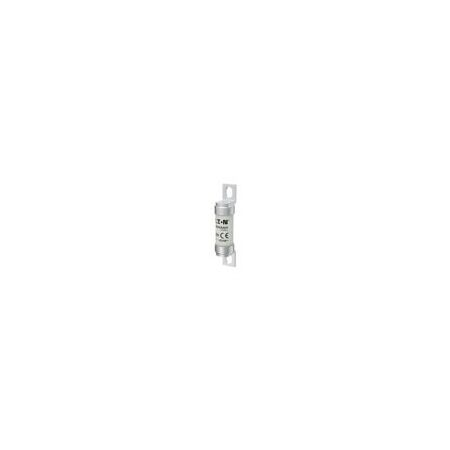

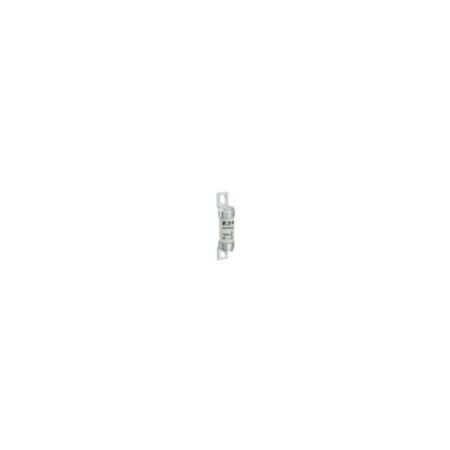

100A 690V AC Type T Fuse | 200 kA Breaking Capacity | High Speed Design | Blade End Connection by Eaton
100A 690V AC Type T fuse with a 200 kA breaking capacity and high-speed design—ideal for semiconductor protection and power conversion applications. Built for reliable performance, with blade end connections and a robust single barrel structure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 100A 690V AC Type T Fuse | 200 kA Breaking Capacity | High Speed Design | Blade End Connection by Eaton
Brand: Eaton
SKU: 100FE
Alternatively Known As: 100A High Speed Fuse, Type T Fuse, 100FE Fuse, Eaton 100A Fuse, Bussmann 100A Fuse
Technical Specifications
- Amperage Rating: 100 A
- Breaking Capacity: 200 kA RMS Symmetrical AC, 50 kA DC at 500 VDC
- Rated Voltage AC: 690 V (IEC), 700 V (UL)
- Rated Voltage DC: 500 V
- Utilization Category: aR (semiconductor protection)
- Fuse Shape: Offset bolted tags
- Mounting Method: Stud
- Connection: Blade end x blade end
- Clearing (I2T): 1800 at 415 V, 2800 at 660 V
- Watt Losses: 23 W
- Fuse Type: FE
- Center-to-center distance of connections: 61.8 mm
- Dimensions (H x L x W): 39mm x 82mm x 91mm
- Weight: 0.0412 kg
Key Features
- High speed British standard fuse
- Single barrel design
- Class aR utilization category for semiconductor protection
- Breaking capacity of 200 kA RMS Symmetrical AC and 50 kA DC at 500 VDC
- Rated voltage: 690 V AC (IEC), 700 V AC (UL), 500 V DC
- Blade end x blade end connection
- Stud mounting method
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse application.
Applications
- Semiconductor protection
- DC Common bus
- DC drives
- Power converters/rectifiers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard Eaton warranty against manufacturing defects applies.
Available Now
The Eaton Bussmann 100A 690V AC Type T Fuse is available for immediate purchase, ideal for semiconductor protection and power conversion applications.
