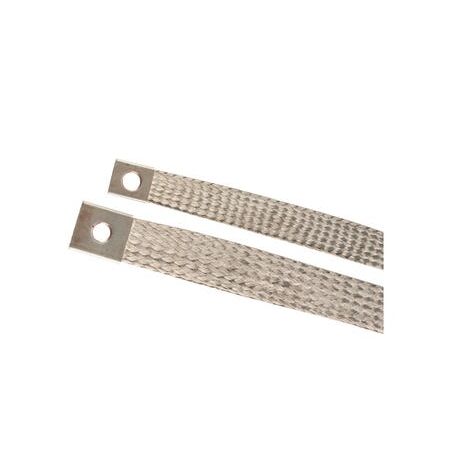

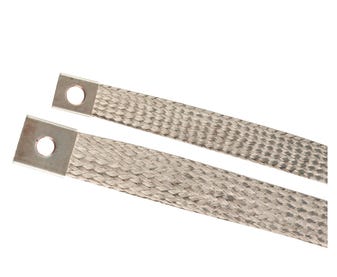

100Amp Copper Braid with M12 Studs | 550mm Length | Tinned Finish & Flexible Design by Cabac
The Cabac 100Amp Copper Braid 550mm Long with M12 Studs is a highly flexible copper lead designed for electrical disconnects, switch handle grounds, and vibration absorption, featuring seamless pure copper ferrules and tinned braid.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 100Amp Copper Braid 550mm Long M12 Studs
Brand: Cabac
SKU: CAB100A-550M12
Alternatively Known As: Flexible Copper Braid 100A, Copper Grounding Braid, Electrical Copper Link, Copper Braided Connector
Technical Specifications
- Current Rating: 100 Amp
- Braid Cross Section: 22 sq. mm
- Length: 550 mm (between centre of first holes)
- Ferrules: Seamless pure copper, rectangular shape
- Braid Finish: Tinned copper braid with plated ferrules
- Stud Size: M12
- Hole Options: Single or double hole available
- Dimensions (H x L x W): 5mm x 550mm x 22mm
- Weight: 0.1 kg
Key Features
- Extremely flexible copper braid suitable for various electrical applications
- Seamless pure copper ferrules formed into a rectangular shape on each end
- Standard braids supplied with tinned braid and plated ferrules
- Available with single or double hole options
- Special ends and braid types available upon request
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical disconnects and switch handle grounds
- Absorbing vibration in electrical systems
- Compensating for linear expansion and contraction in electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from pure copper which is recyclable and sustainable
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac 100Amp Copper Braid 550mm Long with M12 Studs is available now for immediate purchase. Ideal for electrical grounding and connectivity applications.
