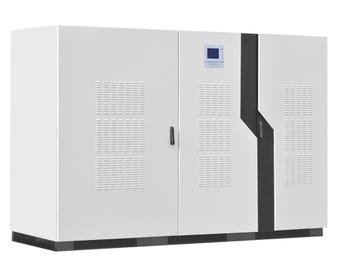

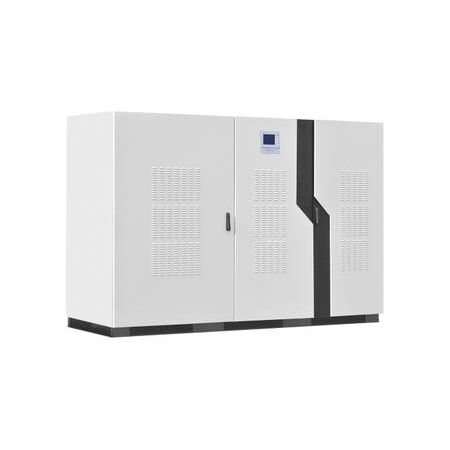

100kVA UPS excluding Batteries e-PowerSeries
e-PowerSeries 100kVA UPS supplied excluding batteries for use with external battery banks. Ideal for data centre and large critical load protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 100kVA EP Series UPS, 100kVA three-phase UPS, transformer-based online UPS, external-battery UPS
Technical Specifications
- Rated Capacity: 100kVA / 90kW
- Topology: True online double conversion
- Input Voltage: 400V AC, three-phase
- Output Voltage: 400V AC, three-phase
- Output Power Factor: 0.9
- Battery Configuration: External 384V DC battery bank, typically 32 x 12V batteries
- Efficiency: Approximately 92%
- Output Waveform: Pure sine wave
- Bypass: Static bypass and manual maintenance bypass
- Frequency: 50/60Hz
- Overload Protection: Overload, short-circuit, over-temperature and voltage protection
- Communications: LCD control panel, RS232/RS485 and optional SNMP
- Design: Tower cabinet
- Dimensions (H x L x W): 1800mm x 1131mm x 943mm
- Weight: 886 kg
Key Features
- Supplied without batteries for connection to an external battery bank
- True online double-conversion technology for continuous power conditioning
- Suitable for data centres, industrial processes and other mission-critical equipment
- Transformer-based design supports large and sensitive electrical loads
- Static bypass and manual maintenance bypass for service continuity
- Intelligent battery management with charging and self-test functions
- Parallel-redundant operation capability
- LCD monitoring of voltage, frequency, load, power factor and battery status
Professional Installation Requirements
- Installation, battery-bank connection, commissioning and maintenance must be performed by suitably qualified electrical and UPS technicians. The installation should comply with AS/NZS 3000, applicable UPS manufacturer instructions and relevant AS 62040 requirements.
Applications
- Data centres and server rooms
- Telecommunications and network infrastructure
- Industrial process control systems
- Medical and critical-care facilities
- Large commercial buildings and mission-critical electrical loads
- Manufacturing and automation equipment
Standards & Compliance
- AS 62040.1:2019 – Uninterruptible power systems safety requirements, applicable to UPS equipment
- AS 62040.2 – Electromagnetic compatibility requirements for UPS equipment
- AS 62040.3 – Performance and test requirements for UPS systems
- AS/NZS 3000:2018 – Electrical installations, applicable to fixed electrical installation and battery-bank wiring
Environmental Benefits
- External battery configuration allows batteries to be replaced independently of the UPS power electronics, potentially reducing whole-system waste
- Online power conditioning can support stable operation of connected equipment and reduce failures caused by voltage disturbances
- Approximately 92% operating efficiency helps reduce energy losses during normal operation
- Long-life cabinet and serviceable architecture can extend equipment life and reduce replacement frequency
Warranty Information
No published EPOWERSERIES manufacturer warranty policy was located. Warranty coverage and duration should be confirmed with the supplying distributor and will typically be subject to the sales contract, installation and commissioning conditions.
Available Now
Available through specialist UPS suppliers and authorised electrical or data-centre power distributors; battery banks and installation services are supplied separately.
