100mm HD Conduit 600 Radius 22.5 Degree Bend | Heavy Duty Construction | Precise Directional Changes | by Pipemakers
The 100mm HD Conduit 600 Radius 22.5 Degree Bend is designed for heavy-duty electrical conduit systems, featuring a durable construction and a 22.5-degree bend angle for precise directional changes. Ideal for industrial and commercial installations, this conduit bend minimizes stress on cables, ensuring safe and efficient electrical wiring protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 100mm HD Conduit 600 Radius 22.5 Degree Bend | Heavy Duty Construction | Precise Directional Changes | by Pipemakers
Brand: Pipemakers
SKU: 100HDCON600R225B
Alternatively Known As: 100mm Heavy Duty Electrical Conduit Bend, 22.5 Degree Conduit Sweep Bend, HD Electrical Pipe Bend 100mm

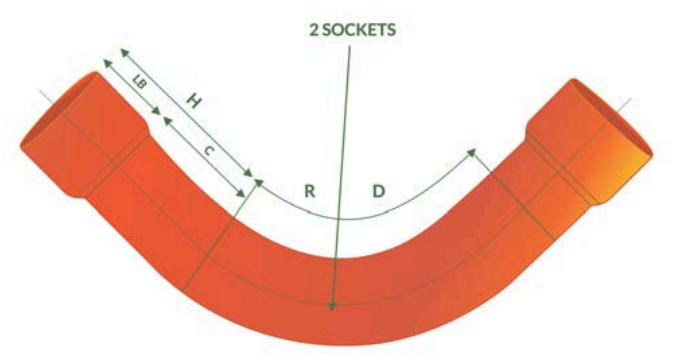

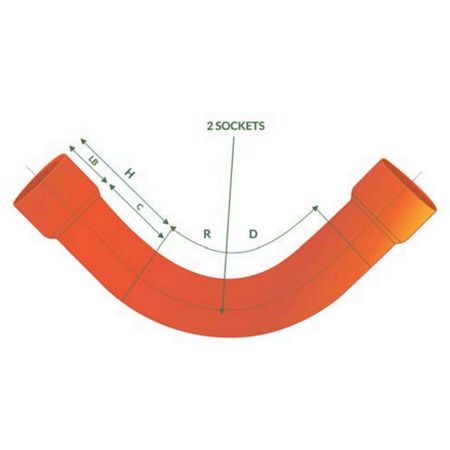

Technical Specifications
- Nominal Size: 100 mm
- Radius R: 625 mm
- Degree Bend: 22.5°
- Dimension D: 245 mm
- Dimension C: 106 mm
- Length Bend (Lb): 99 mm
- Dimensions (H x L x W): 245mm x 625mm x 100mm
- Weight: 3.5 kg
Key Features
- Heavy duty construction for durability in electrical conduit systems
- 22.5 degree bend angle for precise directional changes
- 600 mm radius bend to reduce stress on cables
- Nominal size of 100 mm suitable for large conduit runs
Professional Installation Requirements
- Installation should be performed by a licensed electrician or qualified professional to ensure compliance with electrical standards and safety.
Applications
- Electrical conduit systems requiring heavy duty bends
- Industrial and commercial electrical installations
- Pipe support systems for electrical wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable heavy duty design reduces need for frequent replacements, minimizing waste
- Supports safe and efficient electrical installations which can improve energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Pipemakers warranty policy for details.
Available Now
The Pipemakers 100mm HD Conduit 600 Radius 22.5 Degree Bend is available for immediate purchase, ideal for heavy duty electrical conduit installations in industrial and commercial settings.
