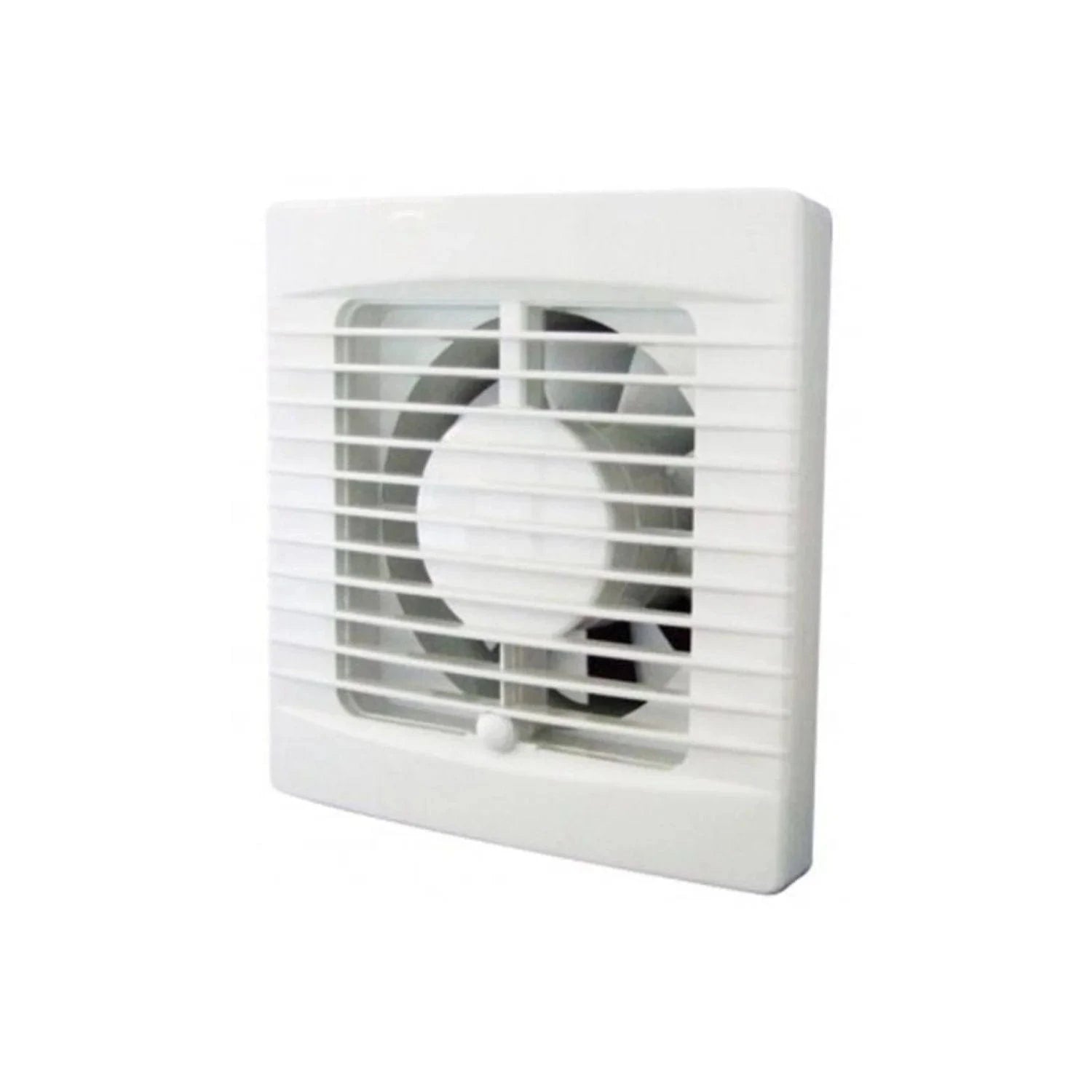

100mm Safety ELV Wall/Ceiling Exhaust Fan 85m³/h White Ventair
100mm Safety Extra Low Voltage Wall/Ceiling Fan Including Transformer 23l/s 85m³/hour by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair FAN5883, XF100LV, 100mm SELV Exhaust Fan, 12V Bathroom Exhaust Fan
Technical Specifications
- Model: FAN5883 / XF100LV
- Duct Size: 100mm
- Air Delivery: 85m³/h, equivalent to 23L/s
- Motor Power: 20W maximum
- Power Input: 12V AC, 50Hz
- Transformer: 12VAC safety isolating transformer included
- Noise Level: 41dB(A)
- Ingress Protection: IPX4
- Fan Type: Axial fan with ball-bearing motor
- Cut-Out Size: Ø112mm
- Fascia Size: 155mm x 155mm
- Switching: Standard remote switching; switch not included
- Colour: White
- Dimensions (H x L x W): 75mm x 163mm x 163mm
- Weight: 0.56 kg
Key Features
- Safety Extra Low Voltage operation for suitable damp-area installations
- Suitable for wall or ceiling mounting
- 12VAC transformer included
- Axial fan with ball-bearing motor for extended service life
- IPX4 moisture protection
- Compact 100mm duct format
- Designed for bathroom, ensuite, toilet and laundry ventilation
Professional Installation Requirements
- Installation must be completed by a licensed electrician. Do not connect the fan directly to mains power; install the supplied 12VAC transformer and wiring in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable bathroom electrical-zone requirements.
Applications
- Bathroom and ensuite ventilation
- Toilet and sanitary-area extraction
- Laundry and utility-room ventilation
- Wall or ceiling ventilation in damp areas
- Low-duty domestic moisture and odour extraction
Standards & Compliance
- AS/NZS 60335.2.80 for safety requirements applicable to electric fans
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- Low 20W motor power helps reduce operating energy consumption
- Ball-bearing motor construction can extend service life and reduce replacement waste
- Durable construction supports repeated cleaning and long-term domestic use
Warranty Information
Five-year warranty against manufacturing defects, subject to Ventair warranty terms. Commercial use is generally limited to a one-year warranty and does not include in-home service.
Available Now
Available through authorised Ventair distributors in Australia.
