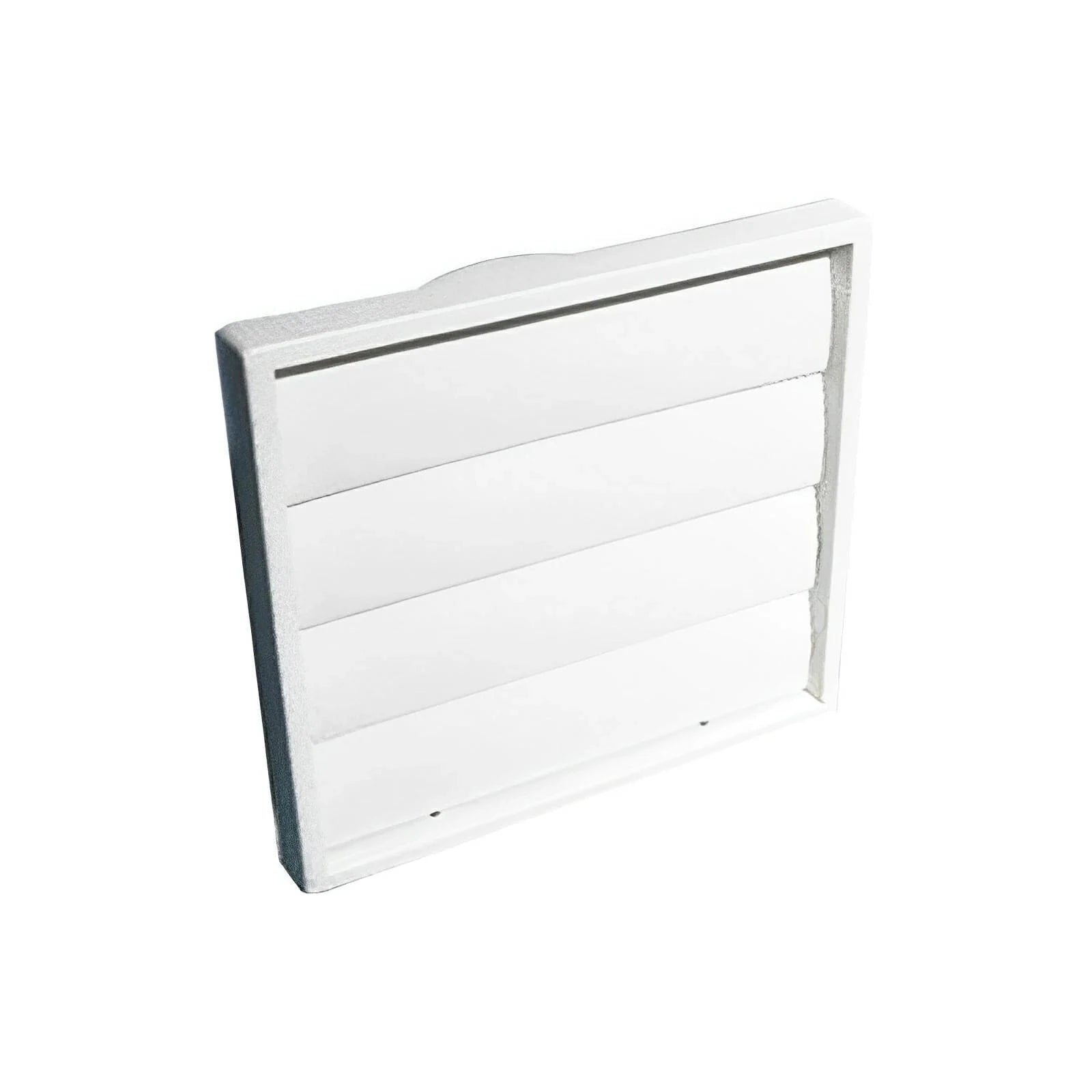

100mm Standard Gravity Shutter Grille White Ventair
100mm Standard Gravity Shutter Grille White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 100mm White Gravity Shutter Grille, Ventair V100GL, External Backdraft Grille
Technical Specifications
- Model: V100GL
- Colour: White
- Nominal Duct Size: 100mm diameter
- Grille Size: 140mm x 140mm
- Recommended Cut-Out: 105mm diameter
- Spigot Length: 32mm
- Operation: Gravity-operated backdraft shutter
- Mounting: External wall or soffit
- Horizontal Use: Suitable
- Dimensions (H x L x W): 140mm x 140mm x 32mm
- Weight: 0.15 kg
Key Features
- Gravity-operated shutters open with exhaust airflow and close when the fan is inactive
- Helps reduce backdrafts, dust and pest entry
- Designed for standard 100mm flexible or rigid ducting
- Suitable for external wall or soffit installation
- Passive operation requires no electrical connection
- Compact white finish for residential and light-commercial ventilation systems
Applications
- Bathroom and toilet exhaust ventilation
- Laundry ventilation
- Kitchen and utility-room exhaust systems
- Residential wall or soffit ventilation
- Light-commercial ventilation installations
Standards & Compliance
- AS/NZS 4740:2000 (R2016) Natural ventilators — classification and performance, where applicable to the natural-flow ventilation assembly
Environmental Benefits
- Passive gravity operation requires no electrical power
- Helps reduce unwanted air infiltration and associated heating or cooling losses when ventilation equipment is idle
- Durable reusable component that can reduce replacement waste over the life of the ventilation system
Warranty Information
Covered by Ventair’s applicable product warranty terms and Australian Consumer Law guarantees. A specific warranty period for this passive grille is not published; confirm warranty coverage at purchase.
Available Now
Available through authorised Ventair distributors in Australia.
