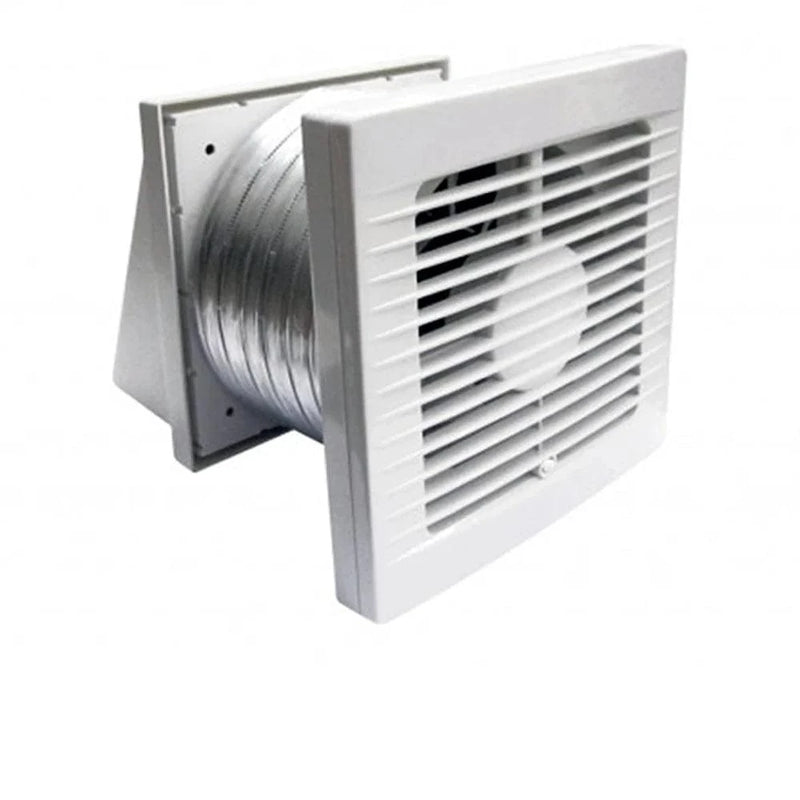

100mm Through-Wall Exhaust Fan Kit 85m³/h White Ventair
100mm Through Wall Fan Kit Standard Model 23l/s 85m³/hour by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair FAN0053, 100mm Axial Through-Wall Fan Kit, Manrose Classic XP100S
Technical Specifications
- Model: FAN0053
- Colour: White
- Air Delivery: 85m³/h, equivalent to 23L/s in free air
- Motor Power: 20W
- Supply: 220–240V AC, 50Hz
- Noise Level: 41dB(A)
- Motor Type: Axial ball-bearing motor
- IP Rating: IPX4
- Duct Diameter: 100mm
- Cut-Out Diameter: 112mm
- Ducting Length: 375mm
- Switching: Standard remote-switch operation; switch not included
- Minimum Wall Cavity: 110mm
- Kit Contents: Expandable semi-rigid duct and weatherproof external cowl
- Dimensions (H x L x W): 155mm x 375mm x 155mm
- Weight: 1.4 kg
Key Features
- Designed for direct extraction through an external wall
- Suitable for wall or ceiling mounting
- Long-life ball-bearing motor
- Includes 375mm expandable semi-rigid ducting
- Includes weatherproof external cowl
- Low-profile 155mm square fan fascia
- Standard remote-switch operation
- Suitable for bathrooms, ensuites and laundries
Professional Installation Requirements
- Installation and electrical connection should be performed by a licensed electrician in accordance with AS/NZS 3000. The exhaust air should discharge to outdoor air through the supplied external cowl.
Applications
- Bathroom ventilation
- Ensuite ventilation
- Laundry ventilation
- Moisture and odour extraction
- Residential wall or ceiling exhaust ventilation
Standards & Compliance
- AS/NZS 60335.2.80 for the safety of household and similar electric fans
- AS/NZS 3000 for electrical installation requirements
Environmental Benefits
- 20W motor supports relatively low electrical energy consumption during operation
- Ball-bearing motor construction is designed to extend service life and reduce replacement waste
- Helps remove moisture from bathrooms and laundries, supporting building durability and reducing moisture-related damage
Warranty Information
5-year Ventair warranty against manufacturing defects, subject to the manufacturer's warranty terms and correct installation.
Available Now
Available through authorised Ventair distributors in Australia.
