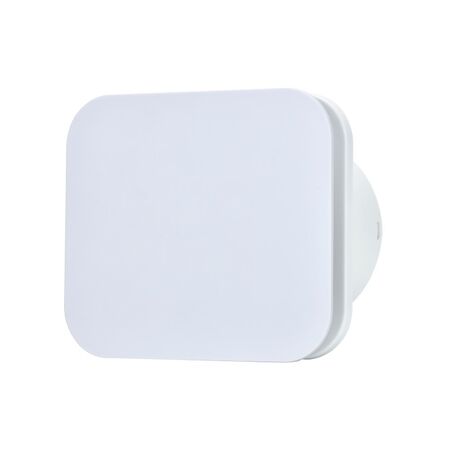

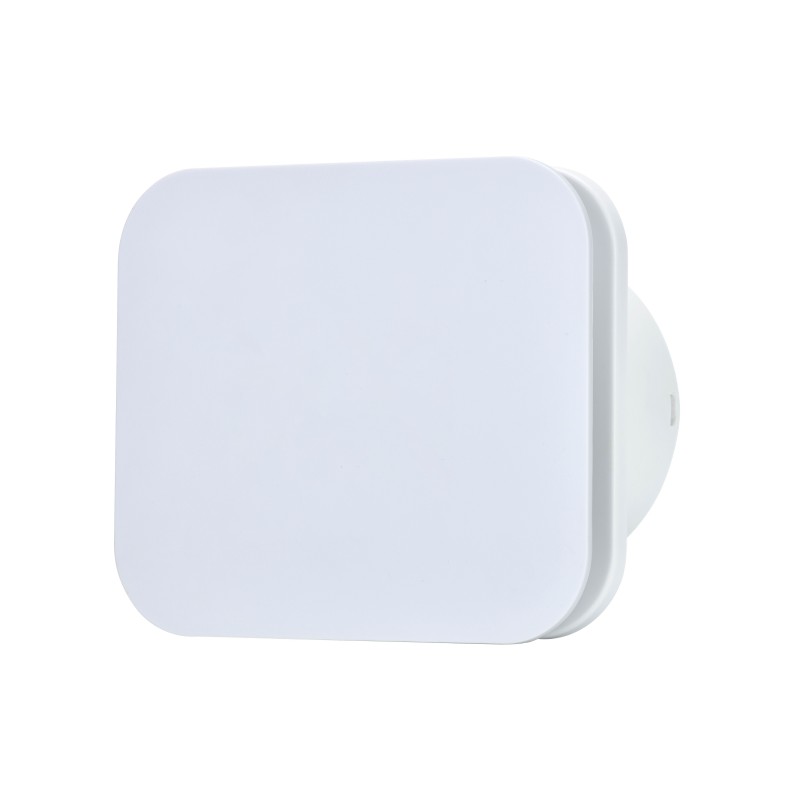

100mm Wall Exhaust Fan | Energy Saving DC Motor | 24/7 Continuous Ventilation | White Square Fascia | by Ventair
The 100mm Wall Exhaust Fan features an energy-efficient DC motor and a sleek white square fascia, making it perfect for small spaces needing reliable extraction. With 24/7 continuous trickle ventilation and a 10-minute run-on timer, it ensures optimal air quality while minimizing noise levels. Ideal for butler's pantries and utility rooms, this fan is designed for easy installation and low running costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Exhaust Motor Power: 2W (24/7 mode), 7W (Standard mode)
- Air Delivery: 50m³/h (24/7 mode), 85m³/h (Standard mode)
- Noise Level: 30dB(A) (24/7 mode), 38dB(A) (Standard mode)
- Ball bearing motor included
- Side outlet duct size: Ø100mm
- Cut out size: Ø103mm
- IP Rating: IPX4
- Minimum install depth: 123mm
- Motor Type: DC
- Power Input: 220-240V~50Hz
- Dimensions (H x L x W): 150mm x 130mm x 150mm
- Weight: 1.2 kg
Key Features
- Solid white fascia with no louvres to trap dust, easy to clean
- Flexible installation options: wall or ceiling mount
- Energy-efficient DC motor for long-life performance and low running costs
- 24/7 continuous trickle ventilation
- 10-minute run on timer mould reduction technology
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure safety and compliance with electrical standards.
Applications
- Small spaces requiring reliable extraction such as butler’s pantries
- Modular builds
- Utility rooms
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety of household and similar electrical appliances
Environmental Benefits
- Energy-efficient DC motor reduces power consumption
- Continuous trickle ventilation improves indoor air quality and reduces mould growth
- Low noise operation encourages consistent use, promoting healthier environments
Warranty Information
3 years warranty.
Available Now
The Ventair EDGE DC 100 Wall Exhaust Fan is available now for immediate purchase. Ideal for small spaces requiring efficient and continuous ventilation.
