100mm x 3m Flexible Duct 3 Zero Ventair

BRAND: Ventair
SKU: VAD100
$14.30 List price: $19.10
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access

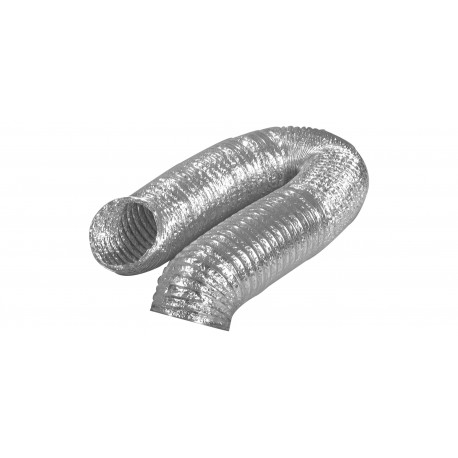

100mm x 3m Flexible Duct 3 Zero by Ventair

Alternatively Known As: 100mm Aluminium Flexible Duct, Aluduct Flexible Duct, Ventair DCT0328

Technical Specifications
  • Model: VAD100
  • Order Code: DCT0328
  • Duct Diameter: 100 mm
  • Duct Length: 3 m
  • Material: Aluminium foil laminated onto polyester film
  • Construction: Spiral wire-reinforced flexible multi-layer duct
  • Insulation: Non-insulated
  • Colour: Silver
  • Temperature Range: Approximately -10°C to +80°C
  • Fire Rating: 3-Zero flexible duct rating
  • Recommended Use: General exhaust and supply air ventilation
  • Dimensions (H x L x W): 100mm x 3000mm x 100mm
  • Weight: 0.4 kg
Key Features
  • Flexible construction for routing around minor obstructions
  • Spiral wire reinforcement helps maintain duct shape
  • Lightweight aluminium foil and polyester laminate construction
  • Non-collapsing design when correctly supported and installed
  • Suitable for compatible 100 mm exhaust fans and ventilation fittings
  • Compact when stored and supplied in a 3 m length
Applications
  • Bathroom and toilet exhaust ventilation
  • Residential exhaust fan installations
  • General mechanical ventilation systems
  • Air extraction and supply-air applications
  • Connection between 100 mm fans, grilles and external ventilation terminals
Standards & Compliance
  • AS 4254.1:2021 — applicable requirements for flexible ductwork used in air-handling systems in buildings
Environmental Benefits
  • Aluminium components are recyclable at end of service life
  • Lightweight construction can reduce transport and handling impacts compared with heavier ductwork
  • Durable flexible construction can reduce replacement frequency and installation waste
Warranty Information

Covered by applicable Australian Consumer Law guarantees. Any additional Ventair manufacturer warranty is subject to the product-specific warranty terms and conditions.

Available Now

Available through authorised Ventair distributors in Australia.
