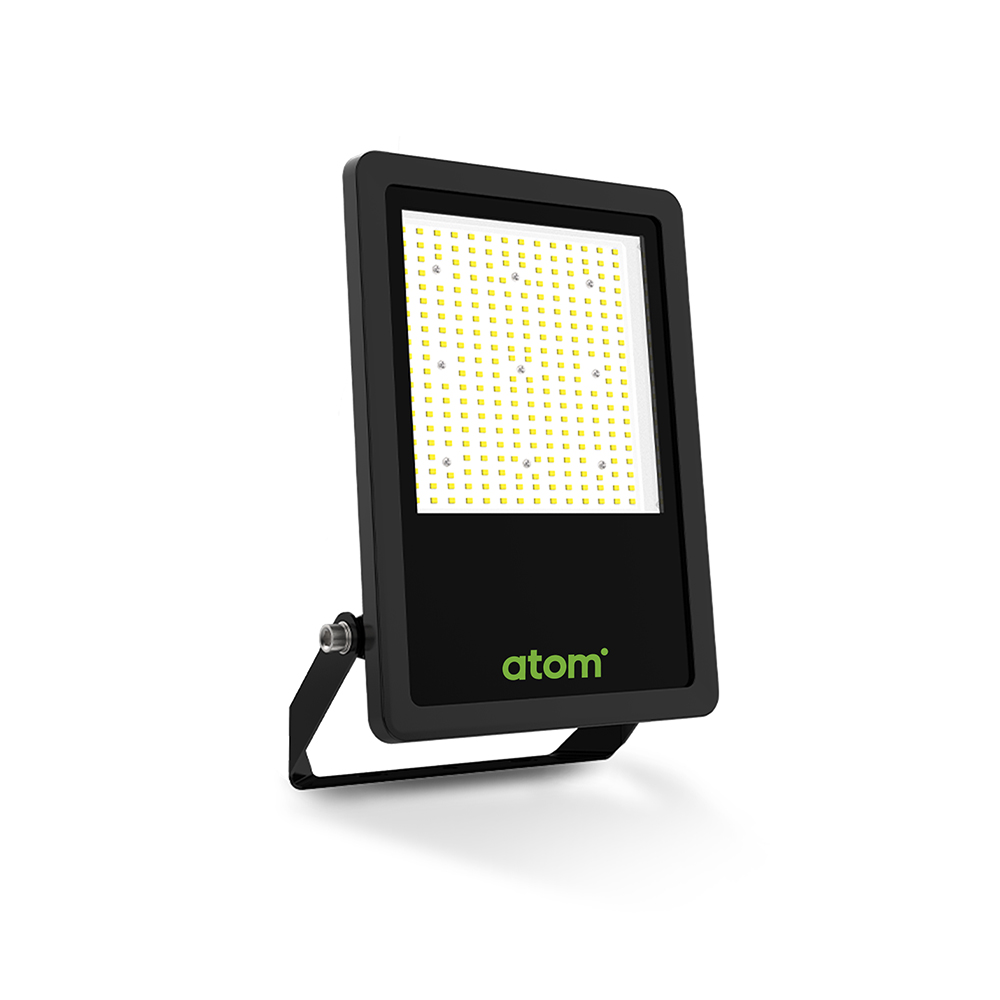

100W LED Floodlight | 5000K Daylight | IP66 Rated | Adjustable | by atom
The 100W LED Floodlight delivers exceptional brightness with a 5000K daylight color temperature, making it perfect for outdoor commercial and security lighting. With an impressive total system efficiency of 160 lm/W and an IP66 rating for dust and water resistance, this adjustable floodlight is designed for durability and optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 100W LED Outdoor Floodlight, 100 Watt LED Security Light, 5000K LED Flood Lamp, Atom Zenix LED Floodlight
Technical Specifications
- Total system efficiency: 160 lm/W
- IP rating: IP66
- IK rating: IK08
- Adjustability: Adjustable floodlight
- Body material: Aluminium with powder-coated finish
- Diffuser material: Glass
- Installation type: Surface mount
- Operating temperature: 0 to 45 °C
- Input frequency: 50 Hz
- Switch type: Inline
- Power factor: 0.95
- Inrush current: 80 A
- Inrush duration: 200 µS (50%)
- Maximum wattage: 100 W
- Input voltage: 230Vac (216-253Vac range in Australia)
- Surge protection L-N and L/N-PE: 6kV
- Colour rendering index (CRI): >80
- LED type: Diffused
- CCT configuration: Single, 5000 K daylight
- Macadam steps: 5-step MacAdam ellipse
- Beam angle: 110°
- LED lifetime: 60,000 hours (L70 B10 rating)
- Driver type: Fixed output, constant current
- Driver current: 500 mA
- Dimmable: No
- Flex & plug or lead length: 1500 mm flying leads (3 wire)
- Dimensions (H x L x W): 250mm x 350mm x 300mm
- Weight: 5 kg
Key Features
- High total system efficiency of 160 lm/W
- IP66 rated for dust and water resistance
- IK08 impact resistance rating
- Adjustable floodlight for directional lighting
- Black powder-coated aluminium body with glass diffuser
- Operating temperature range from 0 to 45 °C
- High power factor of 0.95
- Surge protection of 6kV for line to neutral and line/neutral to earth
- Colour rendering index (CRI) greater than 80
- 110° beam angle with diffused LED type
- LED lifetime of 60,000 hours (L70 B10 rating)
- Non-dimmable fixed output driver included
- 1500 mm flying leads (3 wire) for wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Outdoor lighting for commercial and industrial areas
- Security lighting
- Architectural and landscape lighting
- Sports facilities and parking lots
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.5 – Floodlights
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High efficiency reduces energy consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Surge protection enhances product longevity and reduces electronic waste
Warranty Information
Standard warranty is 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom Zenix 100W LED Floodlight is available for immediate purchase, ideal for outdoor commercial, industrial, and security lighting applications.
