Trade Discount 23%

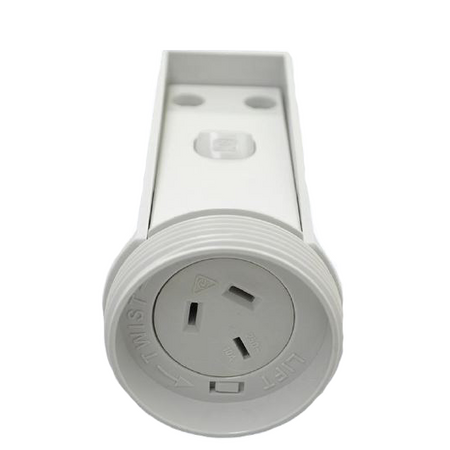

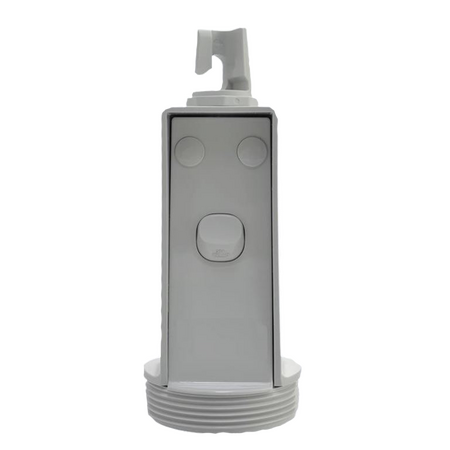

10A C-Series Pendant Socket | Impact & Vibration Resistant | Threaded Hook
Pendant socket with impact and vibration resistance, featuring a threaded hook and red indicator—ideal for commercial industrial applications like conveyor belt lines and warehouse processing. Built for durability, with a suspension mount and 3 pin flat configuration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10A C-Series Pendant Socket | Impact & Vibration Resistant | Threaded Hook
SKU: NLS30756
Alternatively Known As: Pendant Power Socket, Industrial Pendant Socket, Suspension Power Socket, 10A Industrial Socket
Technical Specifications
- Socket Type: Female
- Configuration: 3 Pin Flat
- Installation: Suspension mount
- Socket and Cover Material: PC Polycarbonate
- Terminals Material: Copper
- Switching cycle: >50,000
- Collar Size: M58*2.5
- Hook Size: M20*1.5
- Dimensions (H x L x W): 40mm x 54mm x 140mm
- Weight: 0.3 kg
Key Features
- High performance against harsh workplace environments
- Impact and vibration resistant design
- Threaded hook and wire retaining paths improve safety against cable tension over lifetime
- Includes screw collar for securing matching power plugs
- Compatible with most brands
- Red indicator on switch
- Rubber bush and plugs for cover screws included
- Switching cycle of >50,000
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with Australian standards.
Applications
- Commercial industrial applications such as conveyor belt lines
- Warehouse processing areas
- Assembly lines
- Production lines
- Areas requiring power for unobstructed surfaces
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- High-quality materials ensure long product life
Warranty Information
Standard manufacturer warranty applies. Please refer to the product documentation for details.
Available Now
The 10A C-Series Pendant Socket is available now for immediate purchase. Ideal for industrial and commercial applications requiring durable and safe power connections.
