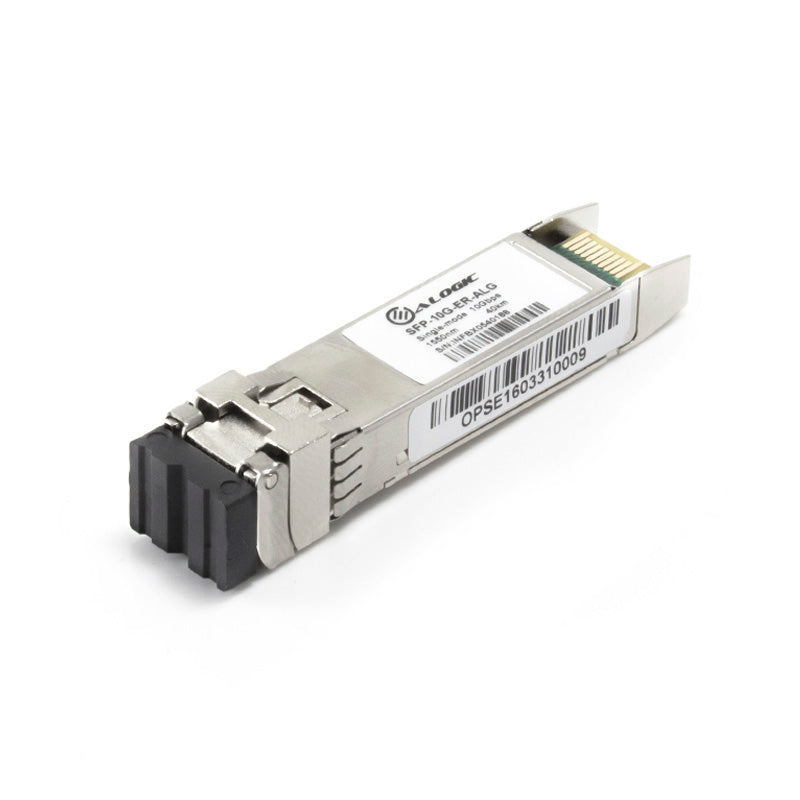

10G BASE-ER SFP+ Transceiver Module | 1550nm EML Transmitter | Low Power Consumption | by SERVEREDGE
The 10G BASE-ER SFP+ Transceiver Module is designed for high-speed data transmission in data centers and enterprise networks. With a 1550nm cooled EML transmitter and low power consumption of less than 1.5W, it ensures efficient performance while meeting MSA specifications. Ideal for telecommunications infrastructure, this module supports 10Gbps connectivity, making it a cost-effective solution for high bandwidth environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10G BASE-ER SFP+ Transceiver Module | 1550nm EML Transmitter | Low Power Consumption | by SERVEREDGE
Brand: SERVEREDGE
SKU: SFP-10G-ER-ALG
Alternatively Known As: 10GBASE-ER SFP+ Transceiver, 10 Gigabit Ethernet SFP+ Module, Cisco Compatible 10G SFP+ Optical Transceiver
Technical Specifications
- 10Gb/s serial optical interface compliant to 802.3a 10GBASE-ER/EW
- Electrical interface compliant to SFF-8431 specifications
- 1550nm cooled EML transmitter with TEC PIN photo-detector
- 2-wire interface for management compliant with SFF 8472 Standard
- Operating case temperature: 0~70°C
- All-metal housing for superior EMI performance
- Power consumption less than 1.5W
- Dimensions (H x L x W): 8mm x 56mm x 13mm
- Weight: 0.05 kg
Key Features
- Low power consumption less than 1.5W
- Compliant with MSA Specifications
- All-metal housing for superior EMI performance
- Cost effective solution enabling higher port densities and greater bandwidth
- 1550nm cooled EML transmitter with TEC PIN photo-detector
- 2-wire interface for management compliant with SFF 8472 Standard
- Advanced firmware allowing customer system encryption information storage
- RoHS Compliant
Professional Installation Requirements
- Installation by qualified network technicians is recommended to ensure proper handling and configuration.
Applications
- Data centers for high-speed data transmission
- Enterprise networks requiring 10Gbps connectivity
- Telecommunications infrastructure
- High bandwidth network environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage and operational costs
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
1 Year warranty against manufacturing defects.
Available Now
The SERVEREDGE 10G BASE-ER SFP+ Cisco Compatible Transceiver Module is available for immediate purchase, ideal for upgrading network infrastructure to 10Gbps speeds.
