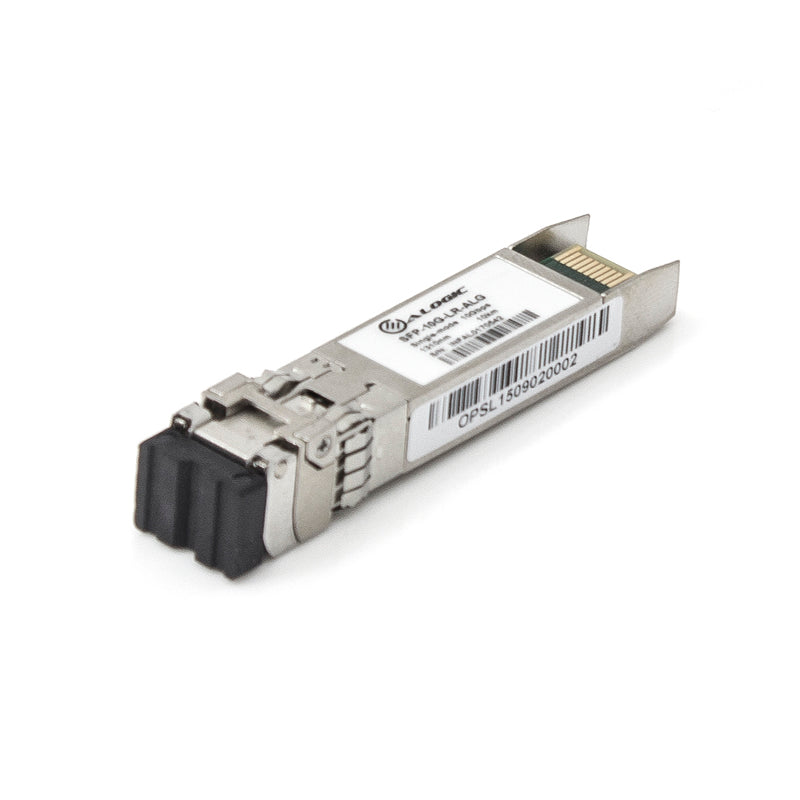

10G BASE-LR SFP+ Transceiver Module | 10.7Gbps Data Links | 10km Range | by SERVEREDGE
The 10G BASE-LR SFP+ Transceiver Module delivers up to 10.7Gbps bi-directional data links, making it ideal for data centers and enterprise networks requiring high-speed 10G Ethernet connectivity. With a transmission distance of up to 10km on single mode fiber and a hot-pluggable design, this module ensures reliable performance and easy installation for telecommunications infrastructure and storage area networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10G BASE-LR SFP+ Transceiver Module | 10.7Gbps Data Links | 10km Range | by SERVEREDGE
Brand: SERVEREDGE
SKU: SFP-10G-LR-ALG
Alternatively Known As: 10GBASE-LR SFP+, 10G SFP+ Transceiver, 10 Gigabit SFP+ Module, 10GBASE-LR Optical Transceiver
Technical Specifications
- Compliant with SFF8431 SFP+ MSA
- Supports up to 10.7Gbps bi-directional data links
- Compliant with IEEE 802.3ae 10GBASE-LR/LW
- Compliant with 10GFC
- 1310nm DFB laser transmitter
- Duplex LC connector
- Up to 10km transmission distance on single mode fiber
- Hot-pluggable SFP+ footprint
- Built-in digital diagnostic functions
- RoHS compliant
- Dimensions (H x L x W): 8mm x 56mm x 13mm
- Weight: 0.05 kg
Key Features
- Low power consumption
- Compliant with MSA Specifications
- All-metal housing for superior EMI performance
- Cost effective solution enabling higher port densities and greater bandwidth
- Hot-pluggable SFP+ footprint
- Built-in digital diagnostic functions
Professional Installation Requirements
- Installation by qualified network technicians is recommended to ensure proper handling and configuration.
Applications
- Data centers for high-speed network connections
- Enterprise networks requiring 10G Ethernet connectivity
- Telecommunications infrastructure
- Storage area networks (SANs)
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage and operational costs
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
1 year limited warranty against manufacturing defects.
Available Now
The SERVEREDGE 10G BASE-LR SFP+ Transceiver Module is available now for immediate purchase. Ideal for data centers, enterprise networks, and telecommunications requiring reliable 10G connectivity.
