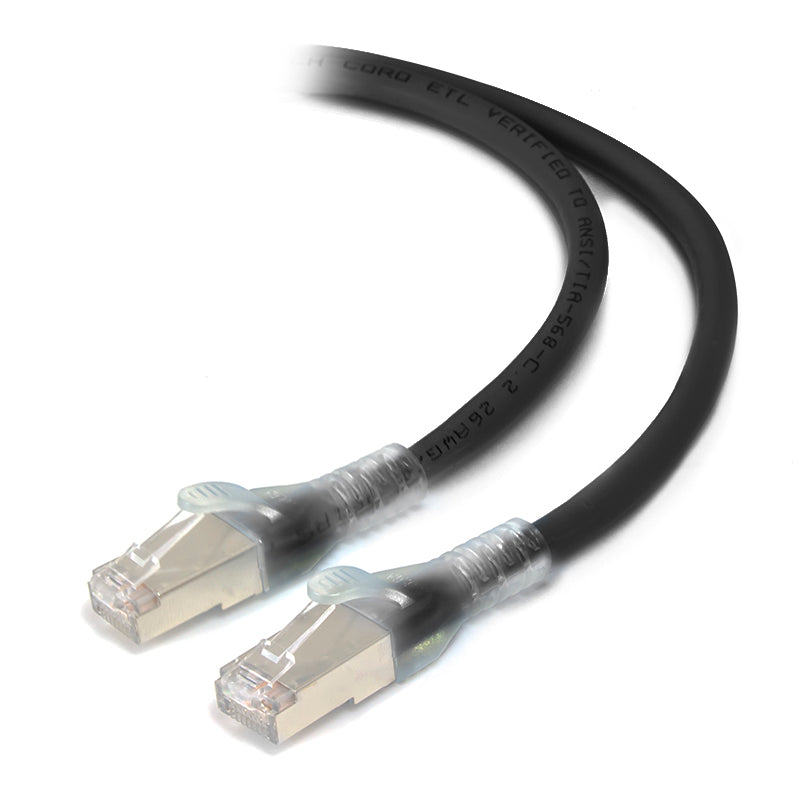

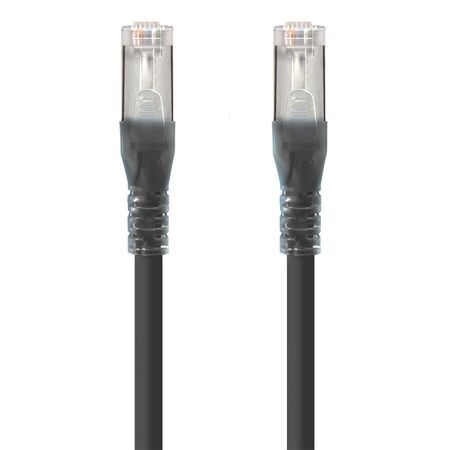

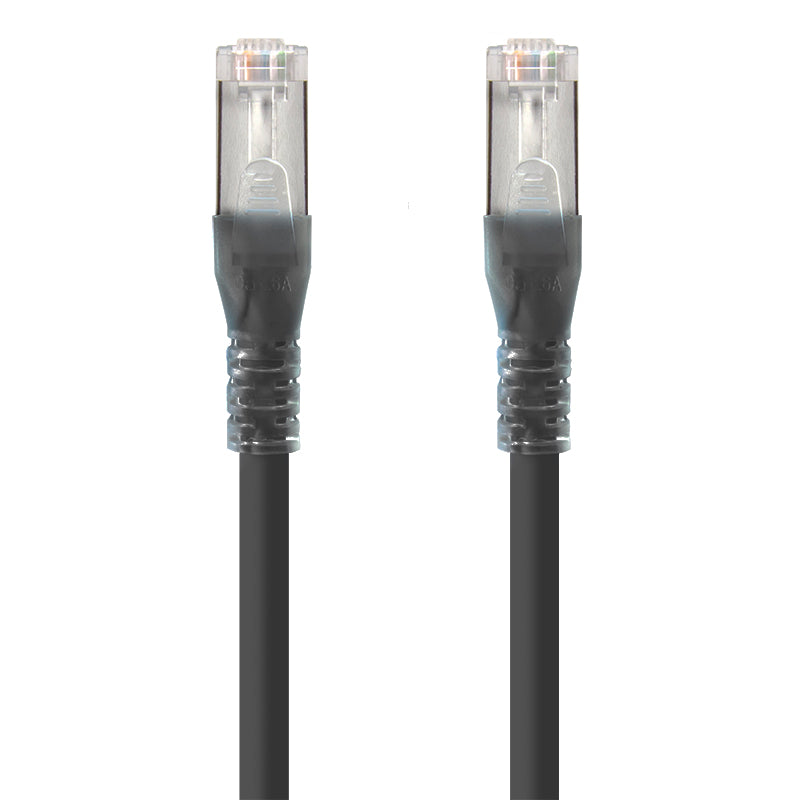

10G Shielded CAT6A LSZH Network Cable | 500 MHz Bandwidth | Gold Plated RJ45 Plugs | 5m Length | by SERVEREDGE
The 10G Shielded CAT6A LSZH Network Cable is designed for high-speed networking, featuring a 500 MHz bandwidth and gold plated RJ45 plugs. Ideal for data centers and enterprise networks, this cable supports up to 10GBASE-T Ethernet, ensuring reliable performance and compliance with industry standards. Its LSZH jacket enhances safety by reducing toxic emissions, making it perfect for both commercial and residential installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10G Shielded CAT6A LSZH Network Cable | 500 MHz Bandwidth | Gold Plated RJ45 Plugs | 5m Length | by SERVEREDGE
Brand: SERVEREDGE
SKU: C6A-05-Black-SH
Alternatively Known As: CAT6A Shielded Network Cable, 10G Ethernet Cable, LSZH CAT6A Cable, 10 Gigabit Network Cable, Shielded RJ45 Ethernet Cable
Technical Specifications
- Bandwidth: 500 MHz
- Conductor: 26 AWG copper
- Shielding: Individually foil shielded twisted pairs with overall copper braided shield
- Connector: Gold plated 8x8 RJ45 plugs
- Cable Type: Category 6A SFTP, straight through wiring
- Standards Compliance: TIA/EIA-568C.2.1 Category 6a, IEC 802.3an, ISO/IEC 11801
- Jacket: LSZH (Low Smoke Zero Halogen)
- Length: 5 meters
- Dimensions (H x L x W): 5mm x 5000mm x 5mm
- Weight: 0.1 kg
Key Features
- Performance rated for 500 MHz bandwidth
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil Mylar with 100% coverage
- Overall copper braided shielding for enhanced protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Category 6A SFTP cable wired straight through
- 26 AWG, gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot for secure connection
- Suppresses Alien Near End Cross Talk (ANEXT) for superior 10GbE performance up to 100 meters
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- Compliant with IEC 802.3an standards and ISO/IEC 11801
- UL approved
- Lifetime warranty
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed 10GBASE-T Ethernet networks
- 1000BASE-TX Fast Ethernet connections
- Data centers, enterprise networks, and home networking
- Suitable for LANs requiring up to 10 Gigabit speeds
Standards & Compliance
- Complies with AS/NZS 3080 for telecommunications cabling
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire, enhancing environmental and user safety.
Warranty Information
Lifetime warranty against manufacturing defects.
Available Now
The SERVEREDGE 5m Black 10G Shielded CAT6A LSZH Network Cable is available now for immediate purchase. Ideal for high-speed network installations in commercial and residential environments.
