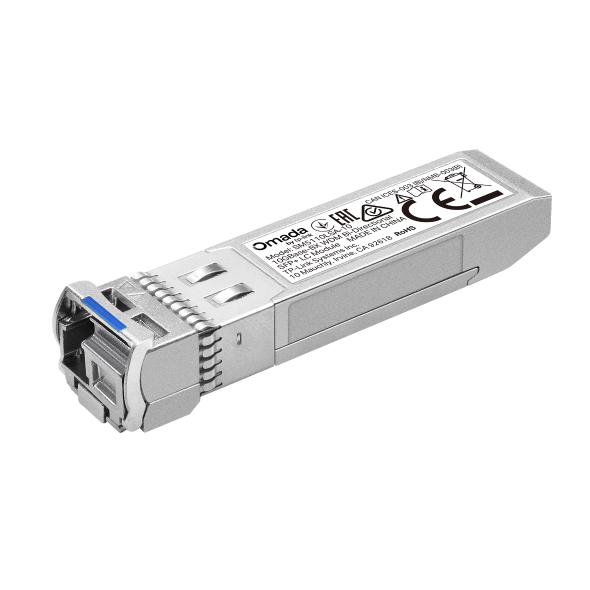

10GBASE-BX WDM Bi-Directional SFP+ LC Module | Single-Mode | 10km Distance | Hot-Pluggable | by TP-LINK
The 10GBASE-BX WDM Bi-Directional SFP+ LC Module is designed for high-speed network connectivity, supporting a 10km transmission distance over single-mode fiber. Ideal for data centers and enterprise networks, this hot-pluggable transceiver ensures seamless integration with 10G switches, enhancing your telecommunications infrastructure while minimizing cabling requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10G SFP+ Bi-Directional Transceiver, 10GBASE-BX SFP+ Module, Single Mode SFP+ LC Transceiver
Technical Specifications
- Data Rate: 10GBASE
- Transmission Distance: 10km
- Fiber Type: Single-mode
- Connector Type: LC
- Technology: WDM Bi-Directional
- Hot-Pluggable: Yes
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G SFP+ Multi-Source Agreement (MSA)
- Dimensions (H x L x W): 8mm x 56mm x 13mm
- Weight: 0.1 kg
Key Features
- Supports WDM Bi-Directional technology using a single strand of fiber for cost savings
- Hot-pluggable single mode SFP+ LC transceiver
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatible with 10G switches like SG3428X and SG3452X
Professional Installation Requirements
- Installation by a qualified network technician is recommended to ensure proper handling and configuration.
Applications
- Data centers and enterprise networks requiring 10G connectivity
- Telecommunications infrastructure using single-mode fiber
- Network switches with 10G SFP+ ports such as SG3428X and SG3452X
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- WDM technology reduces fiber cabling requirements, minimizing material use and installation impact
Warranty Information
3 years warranty provided by TP-LINK.
Available Now
The TP-LINK OMADA 10GBASE-BX WDM Bi-Directional SFP+ LC Module is available for immediate purchase, ideal for upgrading network infrastructure to 10G speeds with cost-effective fiber usage.
