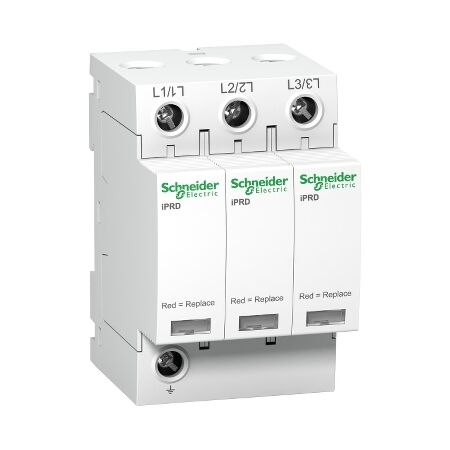

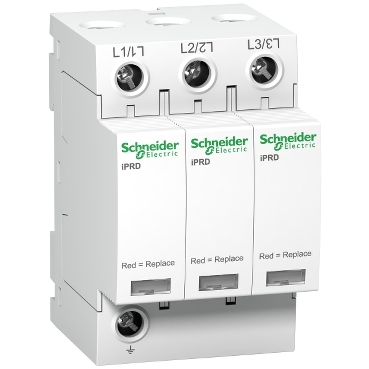

10KA Surge Arrestor 3P | Modular Design | 3P+N Configuration | Visual End-of-Life Indicator | @Pack of 1 | by Clipsal
The 10KA Surge Arrestor 3P is designed to protect three-phase electrical systems from transient overvoltages. With a robust 10kA surge protection and a modular design for easy installation, it's perfect for residential, commercial, and industrial applications. The visual end-of-life indicator ensures timely maintenance, making it an essential component for safeguarding sensitive electronic equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10KA Surge Arrestor 3P | Modular Design | 3P+N Configuration | Visual End-of-Life Indicator | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9L20300
Alternatively Known As: Surge Protection Device, SPD, 3 Phase Surge Protector, Clipsal Surge Arrestor, SCHA9L20300, Modular Surge Arrester
Technical Specifications
- Type: Modular surge arrester
- Configuration: 3P+N (Three phase plus neutral)
- Nominal discharge current (In): 10kA (8/20μs)
- Maximum continuous operating voltage (Uc): 350V AC
- Mounting: DIN rail
- Visual end-of-life indicator
- Complies with IEC 61643-11
- Dimensions (H x L x W): 90mm x 68mm x 54mm
- Weight: 0.4 kg
Key Features
- Provides 10kA surge protection for three-phase systems
- iPRD20 modular design for easy installation and replacement
- 3P+N configuration for comprehensive protection
- Nominal discharge current: 10kA (8/20μs)
- Maximum continuous operating voltage: 350V AC
- Visual end-of-life indicator for maintenance
- DIN rail mountable
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical distribution boards
- Industrial switchboards
- Protection of sensitive electronic equipment
- Main and sub-distribution panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Protects electrical and electronic equipment from damage, reducing electronic waste
- Enhances system reliability, minimizing downtime and resource consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 10kA Surge Arrestor 3P SCHA9L20300 is available for immediate purchase. Ideal for protecting residential, commercial, and industrial electrical systems from transient overvoltages.
