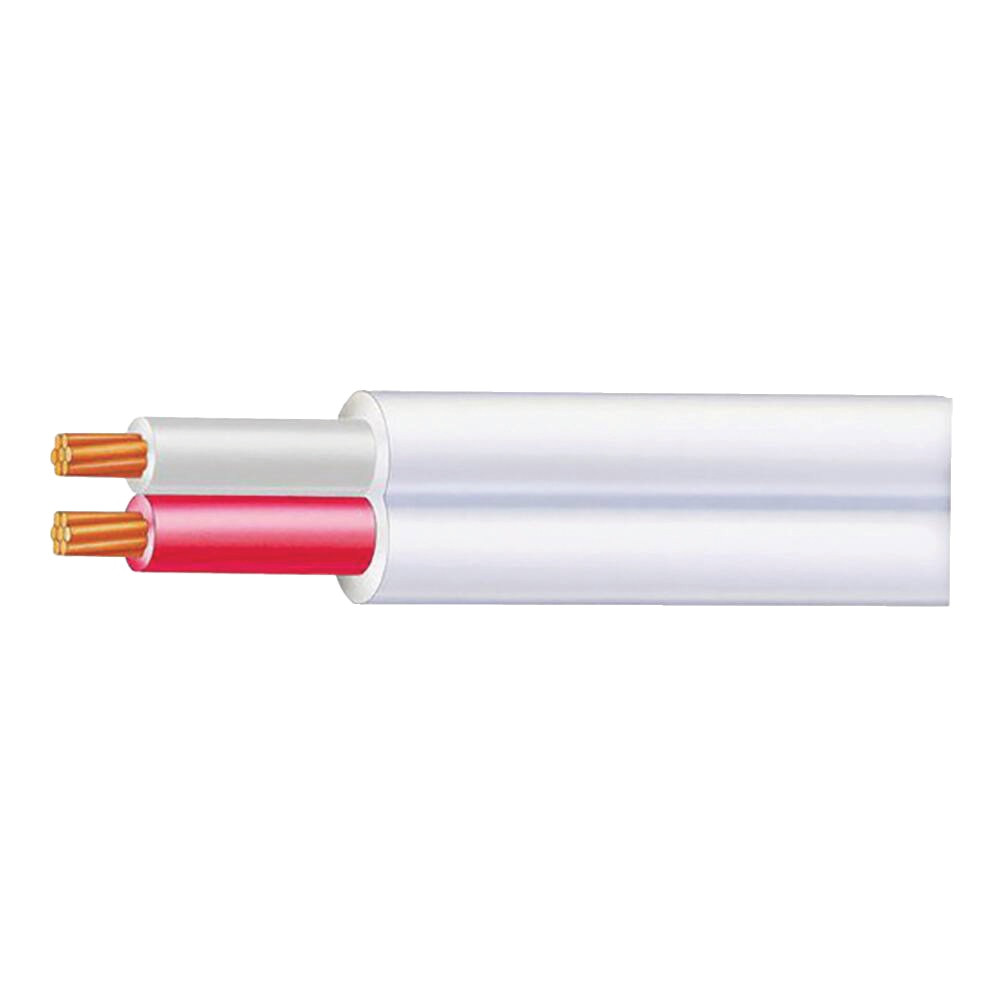

10mm Twin Active Flat Cable | Red & White Cores | Durable PVC Sheath | 100 Metre Drum | @M of 100 | by Electra Cables
The 10mm Twin Active Flat Cable features red and white cores, making it easy to identify active conductors. With a durable white PVC sheath, this cable is perfect for fixed wiring applications in residential and commercial settings. Supplied in a convenient 100 metre drum, it ensures reliable power distribution while complying with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10mm Twin Active Flat Cable | Red & White Cores | Durable PVC Sheath | 100 Metre Drum | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SRF2100V-100WHE
Alternatively Known As: 10mm twin active cable, 10mm flat twin cable, 10mm red and white cable, 10mm electrical cable, Electra twin active flat cable
Technical Specifications
- Conductor Size: 10mm²
- Number of Cores: 2 (Red & White)
- Sheath Colour: White
- Sheath Material: PVC
- Voltage Rating: 450/750V
- Drum Length: 100 metres
- Conductor Material: Plain annealed copper
- Insulation: PVC V-90
- Operating Temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 8mm x 100000mm x 18mm
- Weight: 13.5 kg
Key Features
- 10mm² twin active flat cable with red and white cores
- Durable white PVC sheath for added protection
- Supplied in a 100 metre drum for convenience
- Suitable for fixed wiring applications
- Easy identification of active conductors
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Residential and commercial electrical installations
- Power distribution in buildings
- Suitable for use in switchboards and sub-mains
- Ideal for fixed wiring in domestic, commercial, and industrial environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables with extruded insulation and sheath
Environmental Benefits
- PVC sheath is lead-free and compliant with RoHS standards
- Long-lasting design reduces need for frequent replacements
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase. Ideal for fixed wiring in residential, commercial, and industrial electrical installations.
