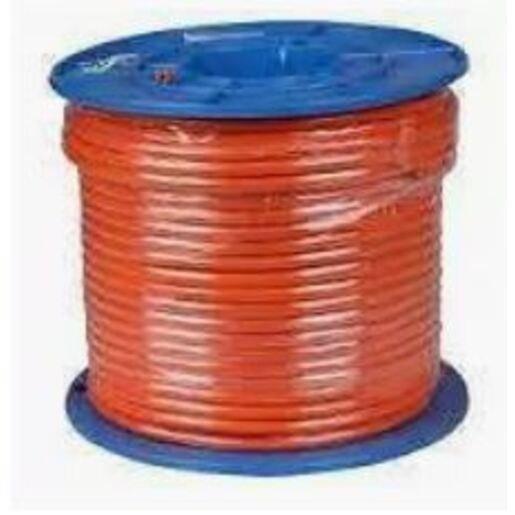

10mm X 3 Core + 2.5mm² Flex Ore Cable | Heavy-Duty PVC Sheath | Oil & Water Resistant | @Pack of 0.10 | by Electra Cables
The 10mm X 3 Core + 2.5mm² Flex Ore Cable is designed for mining and industrial power supply applications. With a heavy-duty PVC sheath and flexible tinned copper conductors, this cable offers exceptional durability and resistance to oil, water, and abrasion. Ideal for underground and surface mining operations, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10mm X 3 Core + 2.5mm² Flex Ore Cable | Heavy-Duty PVC Sheath | Oil & Water Resistant | @Pack of 0.10 | by Electra Cables
Brand: Electra Cables
SKU: FSRC3100+E-BOR
Alternatively Known As: Mining flexible cable, 3 core mining cable, flexible ore cable, heavy duty mining cable, FSRC3100+E-BOR
Technical Specifications
- Conductor size: 3 x 10mm² + 1 x 2.5mm² earth
- Conductor material: Tinned copper
- Insulation: PVC
- Sheath: Heavy-duty PVC, black
- Voltage rating: 0.6/1kV
- Temperature rating: -15°C to +90°C
- Flexibility: Class 5
- Oil, water, and abrasion resistant
- Dimensions (H x L x W): 22mm x 100000mm x 22mm
- Weight: 18 kg
Key Features
- Flexible 10mm² 3 core cable with 2.5mm² earth conductor
- Heavy-duty, robust construction for mining and industrial use
- Flexible tinned copper conductors for enhanced corrosion resistance
- PVC insulation and sheath for durability and protection
- Resistant to oil, water, and abrasion
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and relevant local regulations.
Applications
- Mining and industrial power supply
- Heavy-duty extension leads
- Mobile plant and equipment
- Underground and surface mining operations
- Construction sites
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3191 – Electric flexible cords
Environmental Benefits
- Durable construction extends cable lifespan, reducing replacement frequency and waste
- Tinned copper conductors offer improved corrosion resistance, minimizing environmental contamination
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Electra Cables 10mm x 3 Core + 2.5mm² Flex Ore Sheath Cable (FSRC3100+E-BOR) is available for immediate purchase. Ideal for mining, industrial, and construction power supply applications.
