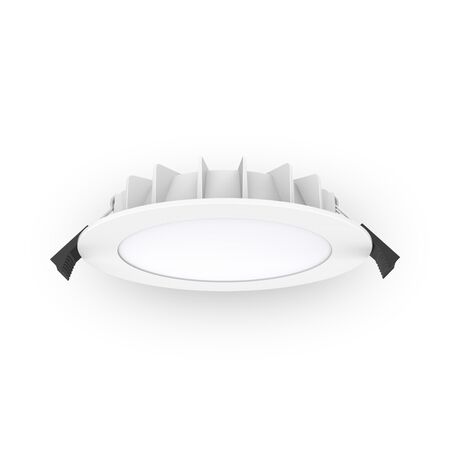

10W Flush Lens Low Profile LED Downlight | Tri-CCT | Dimmable Driver | IP54 Rated | by atom
The 10W Flush Lens Low Profile LED Downlight is designed for versatile lighting solutions, featuring a Tri-CCT configuration (3000K, 4000K, 5700K) and a dimmable driver for customizable brightness. With an impressive system efficiency of 115 lm/W and an IP54 rating for moisture resistance, this downlight is perfect for both residential and commercial applications, ensuring long-lasting performance and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri-CCT LED Downlight, Dimmable LED Downlight, Flush Lens LED Light, Low Profile LED Ceiling Light
Technical Specifications
- Total System Efficiency: 115 lm/W
- IP Rating: IP54 front face only
- IC Rating: IC-4 for insulation coverage
- Body Material: Aluminium with powder-coated finish
- Diffuser Material: PMMA
- Installation Type: Recessed
- Operating Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 10 W
- Input Voltage: 230Vac (-6%/+10%)
- Colour Rendering Index (CRI): >80
- Macadam Steps: 5-step MacAdam Ellipse
- Beam Angle: 90°
- LED Voltage: 36 V
- LED Current: 230 mA
- LED Lifetime: >54,000 hours (TM-21 Reported)
- Colour Temperatures and Lumens: 3000K - 1050 lm, 4000K - 1150 lm, 5700K - 1100 lm
- Driver Type: Dimmable (Phase cut), Constant Current
- Driver Included: Yes
- Flex & Plug Length: 600 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Dimensions (H x L x W): 50mm x 120mm x 120mm
- Weight: 0.3 kg
Key Features
- Tri-CCT color temperature configuration (3000K, 4000K, 5700K)
- Dimmable with phase cut driver
- High system efficiency of 115 lm/W
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Fixed adjustability with powder-coated white finish
- Long LED lifetime greater than 54,000 hours
- Beam angle of 90 degrees
- Colour Rendering Index (CRI) greater than 80
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Residential lighting: living rooms, bedrooms, kitchens
- Commercial lighting: offices, retail spaces, hospitality
- Recessed ceiling installations requiring adjustable color temperature lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598 – Luminaires Safety Standards
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable feature allows for energy savings by adjusting light output
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 10W Flush Lens Low Profile LED Downlight with Dimmable Driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
