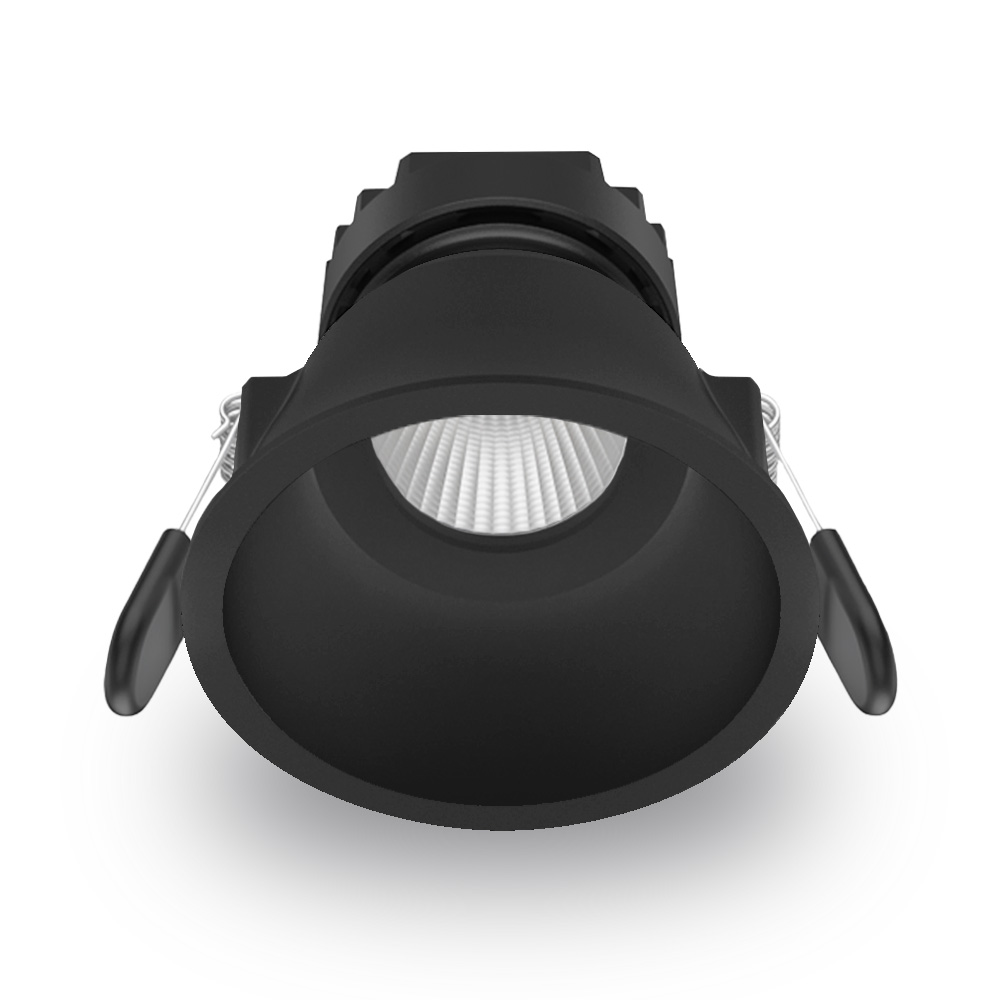

10W LED COB Adjustable Downlight | Dimmable Driver | 50° Beam Angle | TRI-CCT | by atom

BRAND: Atom
SKU: AT9029/ADJ/BLK/TRI
$72.10 List price: $87.30
+
The 10W LED COB Adjustable Downlight is perfect for both residential and commercial lighting needs. With a dimmable driver and a 50° beam angle, it offers flexibility in illumination. The TRI-CCT configuration allows you to choose between warm white, cool white, and daylight, making it ideal for various settings. Its IP54 rating ensures moisture resistance, while the adjustable design provides directional lighting for any space.

Alternatively Known As: 10W LED adjustable downlight, TRI-CCT LED downlight, dimmable LED ceiling light, COB LED recessed light, adjustable LED spotlight

Technical Specifications
  • Dimensions (H x L x W): 60mm x 95mm x 95mm
  • Weight: 0.3 kg
Key Features
  • 10W system max wattage with high total system efficiency of 89-98 lm/W
  • Adjustable beam angle with 50° beam spread
  • TRI-CCT configuration offering warm white (3000K), cool white (4000K), and daylight (5000K)
  • Dimmable phase cut driver included with re-wireable flex & plug
  • IP54 rated front face for moisture resistance
  • IC-4 rated for safe insulation coverage in Australian environments
  • Powdercoated aluminium body with glass diffuser
  • Colour rendering index (CRI) greater than 80
  • Low glare with UGR less than 10 for black model and less than 19 for white
  • Long LED lifetime rated L80B10 > 55,000 hours at 25°C and 40°C ambient temperature
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe recessed mounting.
Applications
  • Residential lighting: living rooms, kitchens, bedrooms
  • Commercial lighting: offices, retail spaces, hospitality
  • Recessed ceiling installations requiring adjustable directional lighting
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 60598 – Luminaires safety standards
  • AS/NZS 61347 – Lamp control gear standards
  • AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long LED lifetime minimizes waste and replacement frequency
  • Dimmable driver allows for reduced energy use when full brightness is not needed
Warranty Information

Standard warranty is 3 years return-to-base. VIP warranty offers 5 years total (2 years onsite, 3 years return-to-base) for registered users in defined regions.

Available Now

The atom 10W LED COB Adjustable Downlight with Dimmable Driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
