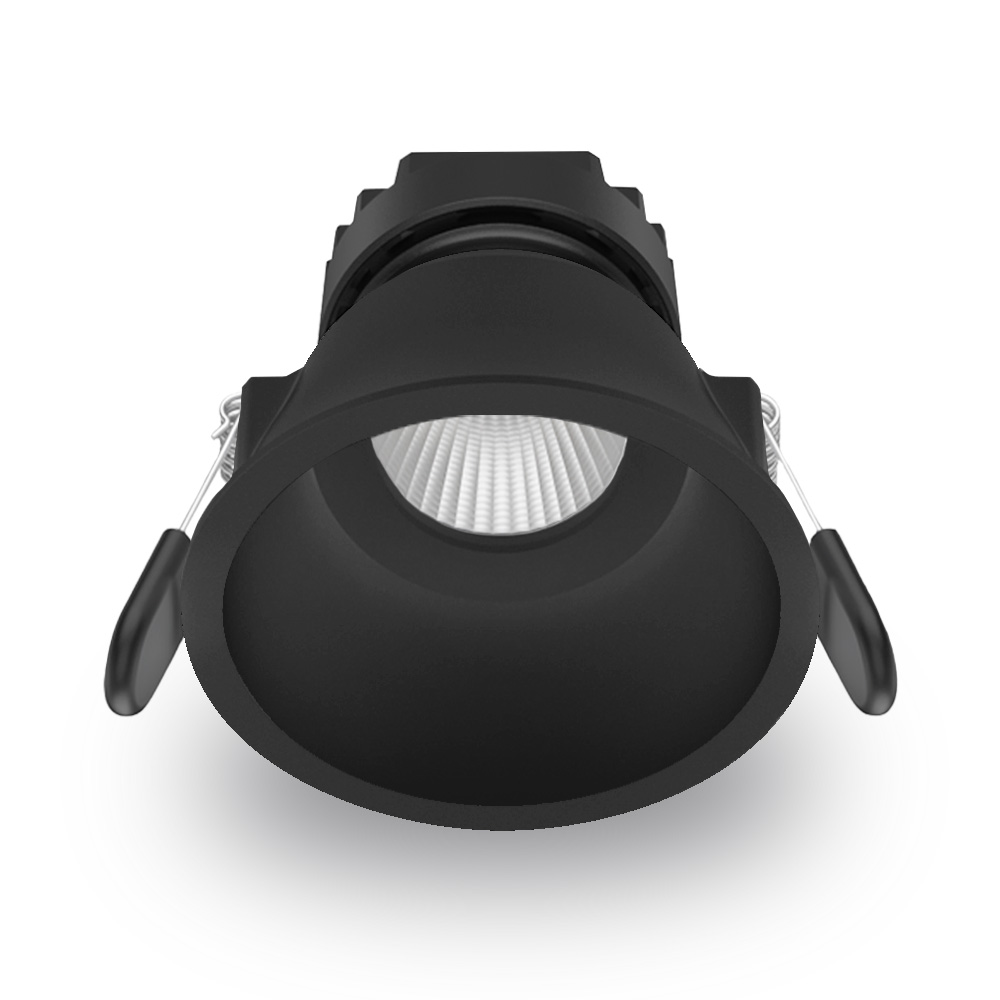

10W LED COB Adjustable Downlight | Dimmable Driver | 50° Beam Angle | TRI-CCT | by atom
The 10W LED COB Adjustable Downlight is perfect for both residential and commercial lighting needs. With a dimmable driver and TRI-CCT selectable color temperatures (Warm White, Cool White, Daylight), it offers versatility and energy efficiency. The 50° beam angle ensures focused illumination, while the IP54 rating provides moisture resistance, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10W LED Adjustable Downlight, TRI-CCT LED Downlight, Dimmable LED COB Downlight, Recessed LED Ceiling Light
Technical Specifications
- Dimensions (H x L x W): 60mm x 100mm x 100mm
- Weight: 0.3 kg
Key Features
- 10W system max wattage with high total system efficiency up to 98 lm/W
- TRI-CCT selectable colour temperatures: Warm White (3000K), Cool White (4000K), Daylight (5000K)
- 50° beam angle for focused illumination
- Adjustable design for directional lighting (model dependent)
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation contact in Australian environments
- Dimmable with phase cut driver included
- Powdercoated white aluminium body with glass diffuser
- Inline switch type with re-wireable flex & plug (2 pin)
- Long LED lifetime with L80B10 >55,000 hours at 25°C and 40°C ambient temperature
- Colour Rendering Index (CRI) greater than 80
- Low Unified Glare Rating (UGR) <16 for fixed models and <19 for adjustable white model
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe recessed mounting.
Applications
- Residential lighting: living rooms, kitchens, hallways
- Commercial lighting: offices, retail spaces, hospitality
- Recessed ceiling installations requiring adjustable directional lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598 – Luminaires Safety Standards
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Electromagnetic Compatibility for Lighting Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable functionality allows energy savings by adjusting light output
Warranty Information
Standard warranty is 3 years return-to-base. VIP warranty offers 5 years total (2 years onsite, 3 years return-to-base) for registered users in defined regions.
Available Now
The atom 10W LED COB Adjustable Downlight with Dimmable Driver is available for immediate purchase. Ideal for residential and commercial recessed lighting applications requiring adjustable, energy-efficient illumination.
