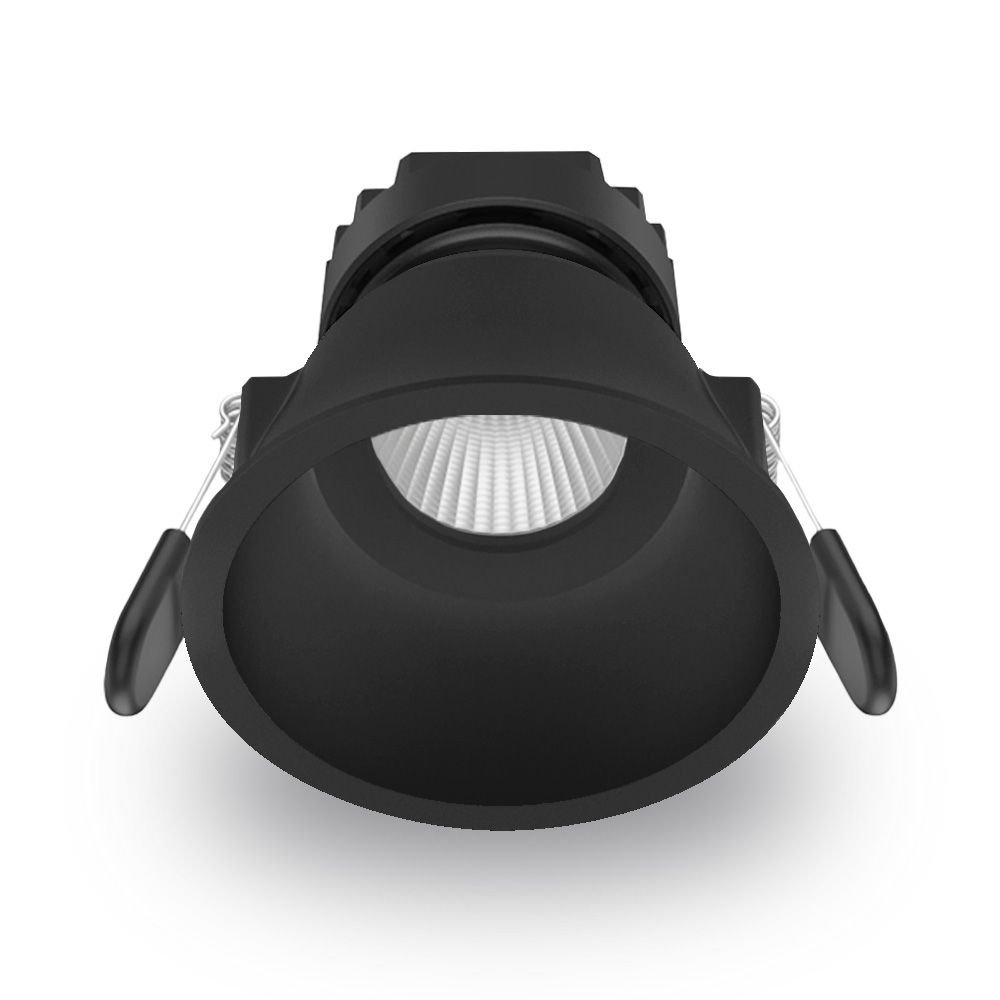

10W LED COB Downlight | Dimmable Driver | 50° Beam Angle | TRI CCT | by atom
The 10W LED COB Downlight is designed for versatile lighting solutions, featuring a dimmable driver and a 50° beam angle. Ideal for both residential and commercial spaces, this downlight offers adjustable color temperatures (3000K, 4000K, 5000K) to suit any ambiance. With an IP54 rating for moisture resistance and a long LED lifetime of over 55,000 hours, it ensures reliable performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10W LED recessed downlight, COB LED downlight, dimmable LED downlight, TRI CCT LED light, adjustable color temperature downlight
Technical Specifications
- Total System Efficiency: up to 98 lm/W
- Colour Rendering Index (CRI): >80
- Beam Angle: 50°
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Driver Type: Dimmable (Phase cut), driver included
- LED Voltage: 36 V
- LED Current: 230 mA
- Colour Temperatures: 3000K, 4000K, 5000K
- UGR: <16
- Macadam Steps: 5-step MacAdam Ellipse
- IP Rating: IP54 front face only
- IC Rating: IC-4
- Operating Temperature Range: -20 to 40 °C
- Switch Type: Inline
- Wiring Type: Re-wireable flex & plug (2 pin)
- LED Lifetime: >55,000 hours (L80B10 at 25°C and 40°C)
- TM-21 Test Hours: 10,000 hours
- Dimensions (H x L x W): 50mm x 75mm x 75mm
- Weight: 0.3 kg
Key Features
- 10W system max wattage with high total system efficiency up to 98 lm/W
- TRI-CCT configuration offering warm white (3000K), cool white (4000K), and daylight (5000K)
- Dimmable with phase cut driver included
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Powdercoated white aluminium body with glass diffuser
- 50° beam angle with low UGR (<16) for comfortable lighting
- LED lifetime rated over 55,000 hours (L80B10)
- Operating temperature range from -20°C to 40°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe recessed mounting.
Applications
- Residential lighting: living rooms, kitchens, bedrooms
- Commercial lighting: offices, retail spaces, hospitality
- Recessed ceiling installations requiring adjustable color temperature lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Particular Requirements for Recessed Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable functionality allows for energy savings and extended lamp life
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 5 years total (2 years onsite, 3 years return-to-base) available to registered users under specific terms.
Available Now
The atom 10W LED COB Downlight with dimmable driver and TRI CCT is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
