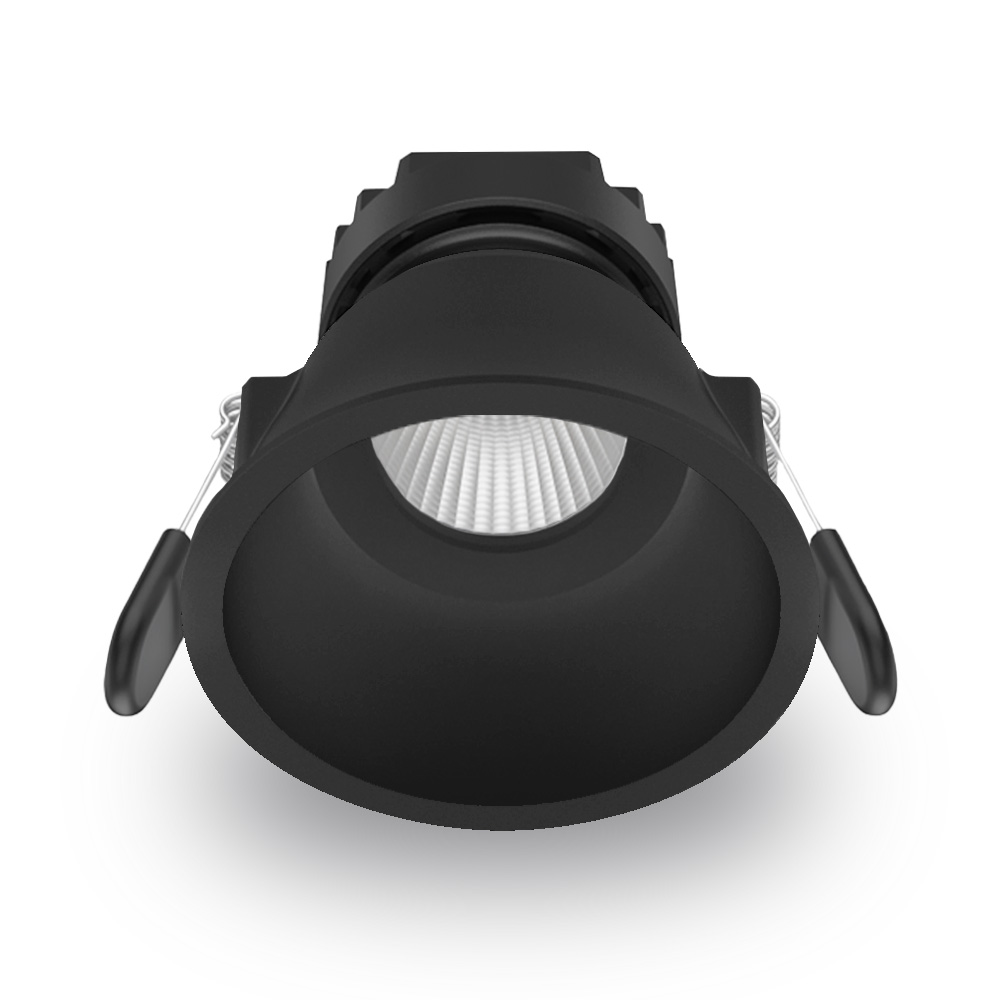

10W LED COB Downlight | Dimmable Driver | 50° Beam Angle | TRI-CCT | by atom
The 10W LED COB Downlight is perfect for both residential and commercial lighting, featuring a dimmable driver and a versatile TRI-CCT configuration. With a 50° beam angle and an impressive total system efficiency of 89 lm/W, this downlight ensures focused illumination while being IP54 rated for moisture resistance. Ideal for recessed ceiling installations, it combines style and functionality for any space.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10W LED recessed downlight, COB LED ceiling light, dimmable LED downlight, TRI-CCT LED light, adjustable color temperature downlight
Technical Specifications
- Total system efficiency: 89 lm/W
- Beam angle: 50°
- Colour temperature options: 3000K, 4000K, 5000K
- CRI: >80
- UGR: <16
- LED voltage: 36 V
- LED current: 230 mA
- Input voltage: 230Vac (216-253Vac range)
- Input frequency: 50 Hz
- Driver type: Dimmable (phase cut), included
- Wiring: Re-wireable flex & plug (2 pin)
- Operating temperature: -20 to 40 °C
- IP rating: IP54 front face only
- IC rating: IC-4
- Material: Powdercoated aluminium body with glass diffuser
- Installation type: Recessed
- Dimensions (H x L x W): 60mm x 100mm x 100mm
- Weight: 0.3 kg
Key Features
- 10W system max wattage with high total system efficiency of 89 lm/W
- TRI-CCT configuration offering warm white (3000K), cool white (4000K), and daylight (5000K)
- 50° beam angle for focused lighting
- Dimmable phase cut driver included with re-wireable flex & plug
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Powdercoated white aluminium body with glass diffuser
- Long LED lifetime with L80B10 >55,000 hours at 25°C and 40°C
- Colour rendering index (CRI) greater than 80
- Low glare with UGR less than 16
- Operating temperature range from -20°C to 40°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe recessed mounting.
Applications
- Residential lighting: living rooms, kitchens, hallways
- Commercial lighting: offices, retail spaces, hospitality
- Recessed ceiling installations requiring adjustable color temperature
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Particular Requirements for Recessed Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable driver allows energy savings through adjustable lighting levels
Warranty Information
Standard warranty is 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The atom 10W LED COB Downlight with Dimmable Driver and TRI CCT is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
