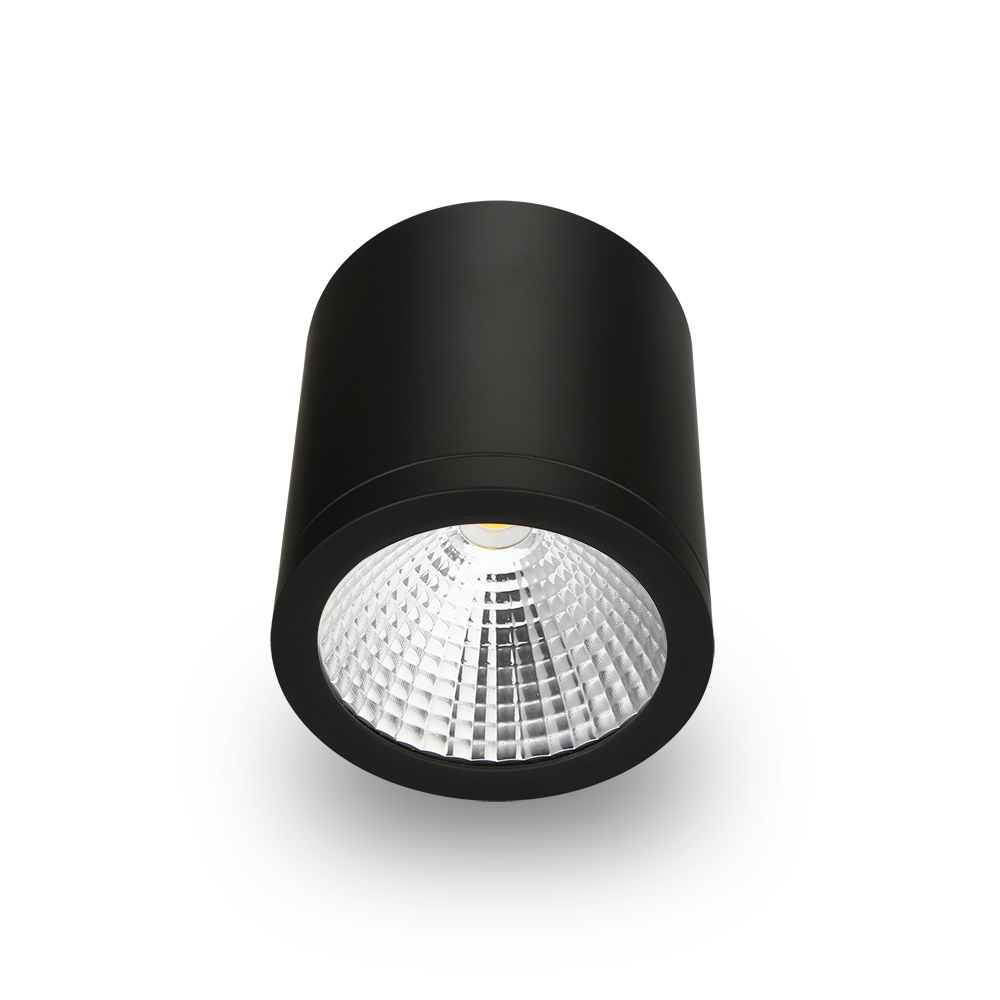

10W LED IP54 Dimmable Surface Mount Downlight | Black Finish | 3000K Warm White | 60° Beam Angle | by atom
Illuminate your space with the 10W LED IP54 Dimmable Surface Mount Downlight, featuring a sleek black finish and warm white 3000K light. Perfect for both residential and commercial applications, this downlight offers a 60° beam angle and high efficiency of 79 lm/W, ensuring optimal lighting while being energy-efficient. With a long LED lifetime of 40,000 hours, it’s designed for durability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10W LED Surface Downlight, Dimmable LED Downlight, IP54 LED Ceiling Light, Warm White LED Surface Mount Light
Technical Specifications
- LED Wattage: 8W
- System Max Wattage: 10W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- LED Type: COB
- Colour Temperature: 3000K Warm White
- Beam Angle: 60°
- CRI: >80
- Macadam Steps: 5-step MacAdam Ellipse
- LED Lifetime: 40,000 hours
- Driver Type: Dimmable (Phase cut), integrated constant current driver
- Driver Current: 215 mA
- IP Rating: IP54 front face only
- Body Material: Aluminium
- Diffuser Material: Glass
- Installation Type: Surface mount
- Switch Type: Inline
- Operating Temperature Range: -20 to 40 °C
- Dimensions (H x L x W): 50mm x 120mm x 120mm
- Weight: 0.5 kg
Key Features
- Dimmable LED with phase cut driver
- IP54 rated front face for protection against dust and water splashes
- High system efficiency of 79 lm/W
- Fixed installation with surface mount design
- Powdercoated aluminium body with glass diffuser
- Colour Rendering Index (CRI) greater than 80 for quality light
- 5-step MacAdam ellipse for consistent colour quality
- LED lifetime of 40,000 hours
- Inline switch type
- Operating temperature range from -20 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting: living rooms, kitchens, hallways
- Commercial lighting: offices, retail spaces, hospitality
- Indoor surface mount lighting requiring dimmable warm white illumination
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime of 40,000 hours reduces waste and replacement frequency
- Dimmable feature allows for energy savings by adjusting light output
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 10W LED IP54 Dimmable Surface Mount Downlight in Black, 3000K Warm White is available for immediate purchase, ideal for residential and commercial surface mount lighting applications.
